| Gearmotor Model | Ratio | Rated Voltage (V) | No-Load | Rated | Stall | ||||
|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Current | Torque | Current | Torque | |||
| RPM | mA | RPM | mA | mN.m / gf.cm | mA | mN.m / gf.cm | |||

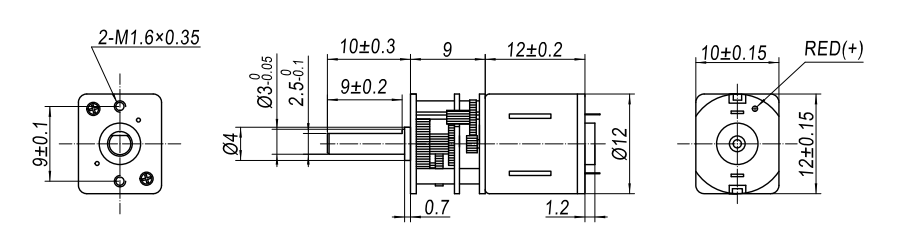

| GM12AMN10-298K | 1 : 298 | 4.5~6VDC | 70 | ≤ 80 | 55 | ≤ 285 | 5.5/55 | ≤ 700 | 210/2100 |

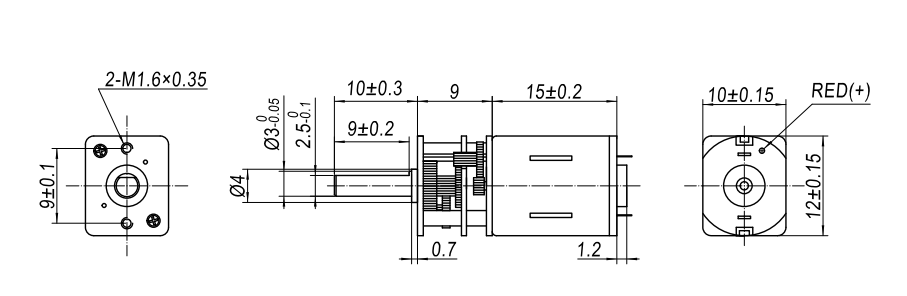

| GM12AMN20-150K | 1 : 150 | 92 | ≤ 55 | 80 | ≤ 140 | 2.8/28 | ≤ 700 | 120/1200 | |
| GM12AMN30-10K | 1 : 10 | 2500 | ≤ 60 | 2200 | ≤ 195 | 4.0/40 | ≤ 400 | 26/260 | |
| Number of stages | 2 | 4 | 5 | 7 |
|---|---|---|---|---|

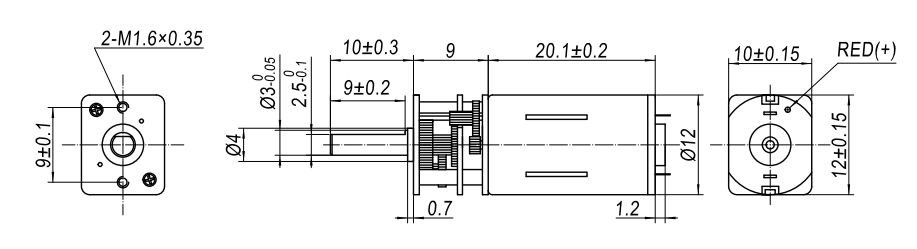

| Gearbox Length “L”(mm) | 9.0 | 9.0 | 9.0 | 12.1 |
| Ratio | 3K / 5K / 10K | 17K/20K/30K/36K/ 50K/63K/100K |
110K/150K/210K/ 250K/298K/380K |
372K/625K/1000K |
| Max. Rated Torque | 200 gf.cm | 600 gf.cm | 1000 gf.cm | 1500 gf.cm |
| Max. Gear Breaked Torque | 600 gf.cm | 1500 gf.cm | 2800 gf.cm | 3500 gf.cm |
| Gearbox Efficiency | 80%~90% | 65%~70% | 55%~60% | 45%~50% |
We are a factory specialized in producing motors for more than 14 years. With three dedicated facilities, a professional R&D team, mature management, and experienced engineering and sales teams, we ensure a reliable and pleasant partnership experience.
To guarantee premium quality, we inspect every process, from incoming raw materials to final shipments. Consistent quality is the foundation of our company's development.
We are a factory. We specialize in micro DC motors and DC gear motors for more than 14 years.
We can draw up online orders allowing payment with Mastercard, Visa, etc. Customers can also pay via PayPal or T/T.
Yes, we can customize and manufacture motors according to our customers' specific performance and size requirements.
Yes, we hold certifications including CE, FCC, ISO, and others. If you have additional specific certificate requirements, we can apply for them for you.
We employ professional inspection staff at every stage of the production process. Completed motors undergo testing using advanced machinery, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Chambers, and Noise Testers.
