13mm 6v 12v 24v Geared Dc Motor Micro Dc Geared Motor High Speed 300rpm for Screwdrivers / Medical Equipment/ Cosmetic Equipment
13mm 6v 12v 24v Geared Dc Motor Micro Dc Geared Motor High Speed 300rpm for Screwdrivers / Medical Equipment/ Cosmetic Equipment
13mm 6v 12v 24v Geared Dc Motor Micro Dc Geared Motor High Speed 300rpm for Screwdrivers / Medical Equipment/ Cosmetic Equipment
13mm 6v 12v 24v Geared Dc Motor Micro Dc Geared Motor High Speed 300rpm for Screwdrivers / Medical Equipment/ Cosmetic Equipment
13mm 6v 12v 24v Geared Dc Motor Micro Dc Geared Motor High Speed 300rpm for Screwdrivers / Medical Equipment/ Cosmetic Equipment
1 / 5
13mm 6v 12v 24v Geared Dc Motor Micro Dc Geared Motor High Speed 300rpm for Screwdrivers / Medical Equipment/ Cosmetic Equipment
13mm 6v 12v 24v Geared Dc Motor Micro Dc Geared Motor High Speed 300rpm for Screwdrivers / Medical Equipment/ Cosmetic Equipment
13mm 6v 12v 24v Geared Dc Motor Micro Dc Geared Motor High Speed 300rpm for Screwdrivers / Medical Equipment/ Cosmetic Equipment
13mm 6v 12v 24v Geared Dc Motor Micro Dc Geared Motor High Speed 300rpm for Screwdrivers / Medical Equipment/ Cosmetic Equipment
13mm 6v 12v 24v Geared Dc Motor Micro Dc Geared Motor High Speed 300rpm for Screwdrivers / Medical Equipment/ Cosmetic Equipment

13mm 6v 12v 24v Geared Dc Motor Micro Dc Geared Motor High Speed 300rpm for Screwdrivers / Medical Equipment/ Cosmetic Equipment

Send Inquiry

Product Description

Product Banner
Technical Specifications

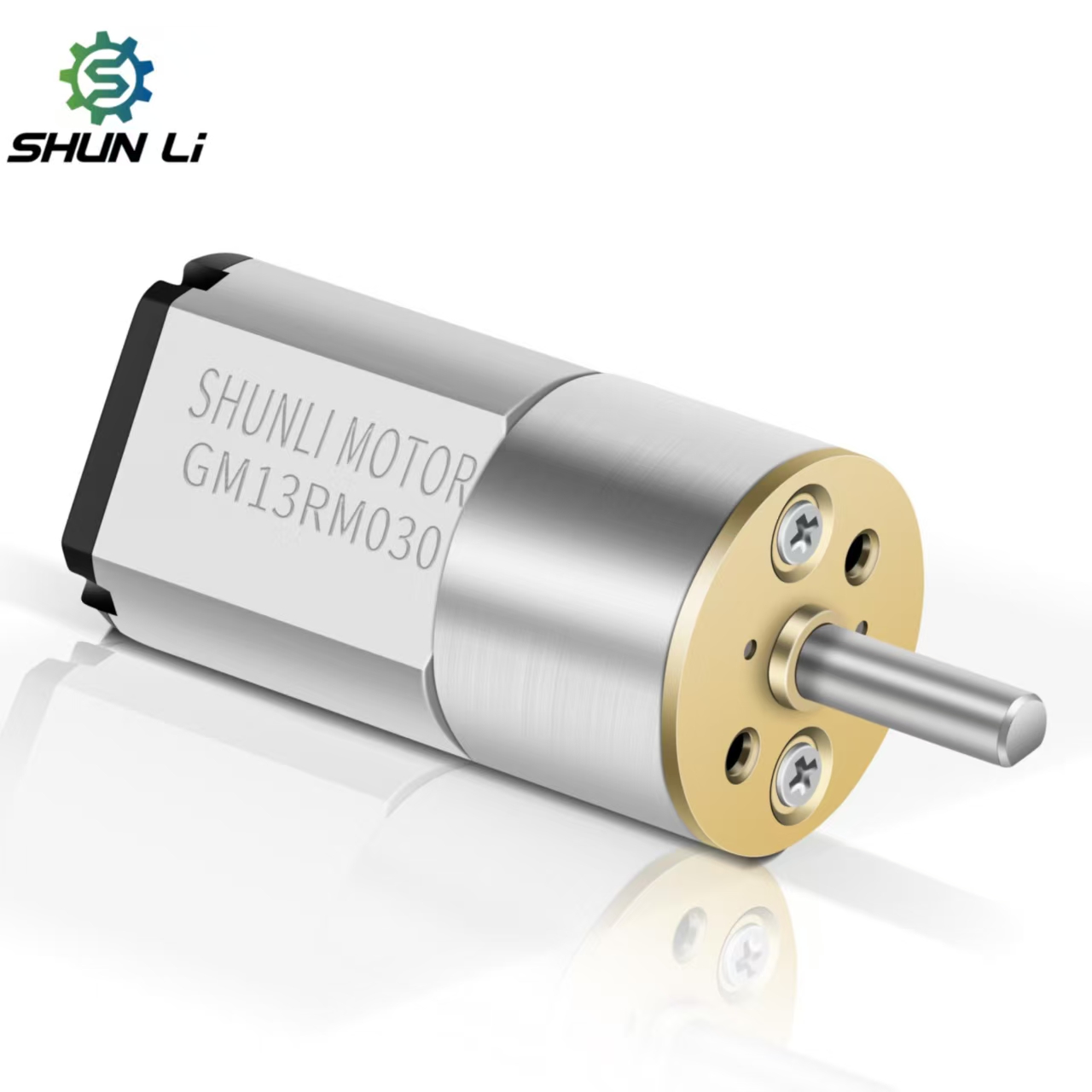

Motor Details
Product Model GM13RM030/050
Gearbox Length 21±0.3mm
Speed 80RPM-325RPM
Voltage 3.7V
Torque 12mN.m / 60mN.m
Customization Dimensions and parameters can be customized
Dimensional Drawings & Performance

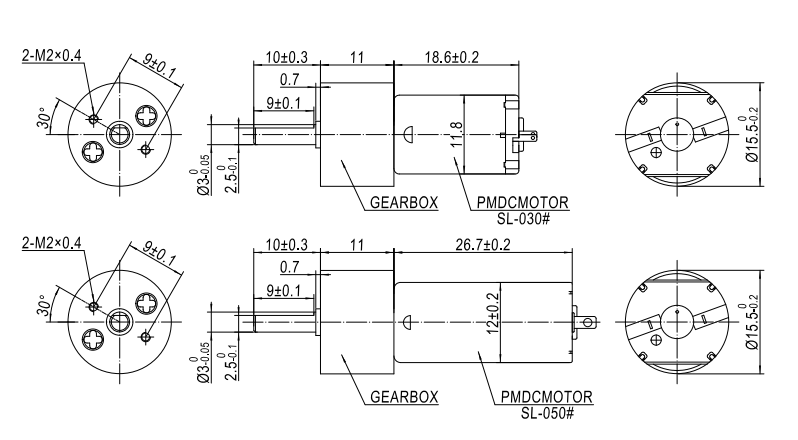

Dimensional Drawing 1

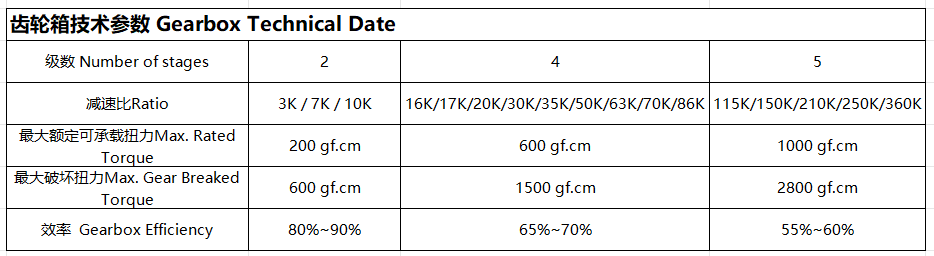

Dimensional Drawing 2

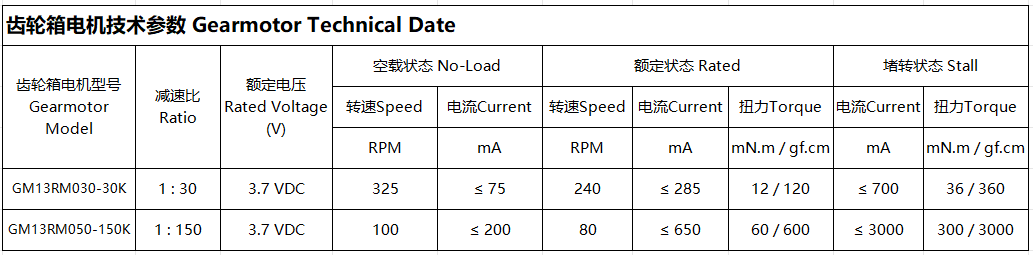

Performance Chart
Product Real Shot Display
Product View 1
Product View 2
Product View 3
Product View 4
Product View 5
Product View 6
Frequently Asked Questions
Are you a trading company or manufacturer?
We're a factory specializing in micro DC motors and DC gear motors for more than 14 years.
What is the payment term for a new customer?
We offer multiple payment options including Online Assurance Orders (Master Card, Visa, etc.), PayPal, and TT.
Can you customize the motor for me?
Yes, we can customize a suitable motor according to our customer's specific technical requirements.
Do you have certificates for the motors?
Yes, we have CE, FCC, ISO, etc. We can also apply for other specific certificates upon request.
How is your Quality Control?
We utilize professional checking staff and advanced testing equipment like Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, and Noise testers at every production stage.
Are the transmission dimensions customizable?
Yes, both the transmission dimensions and specific motor parameters can be fully customized to fit your application.
