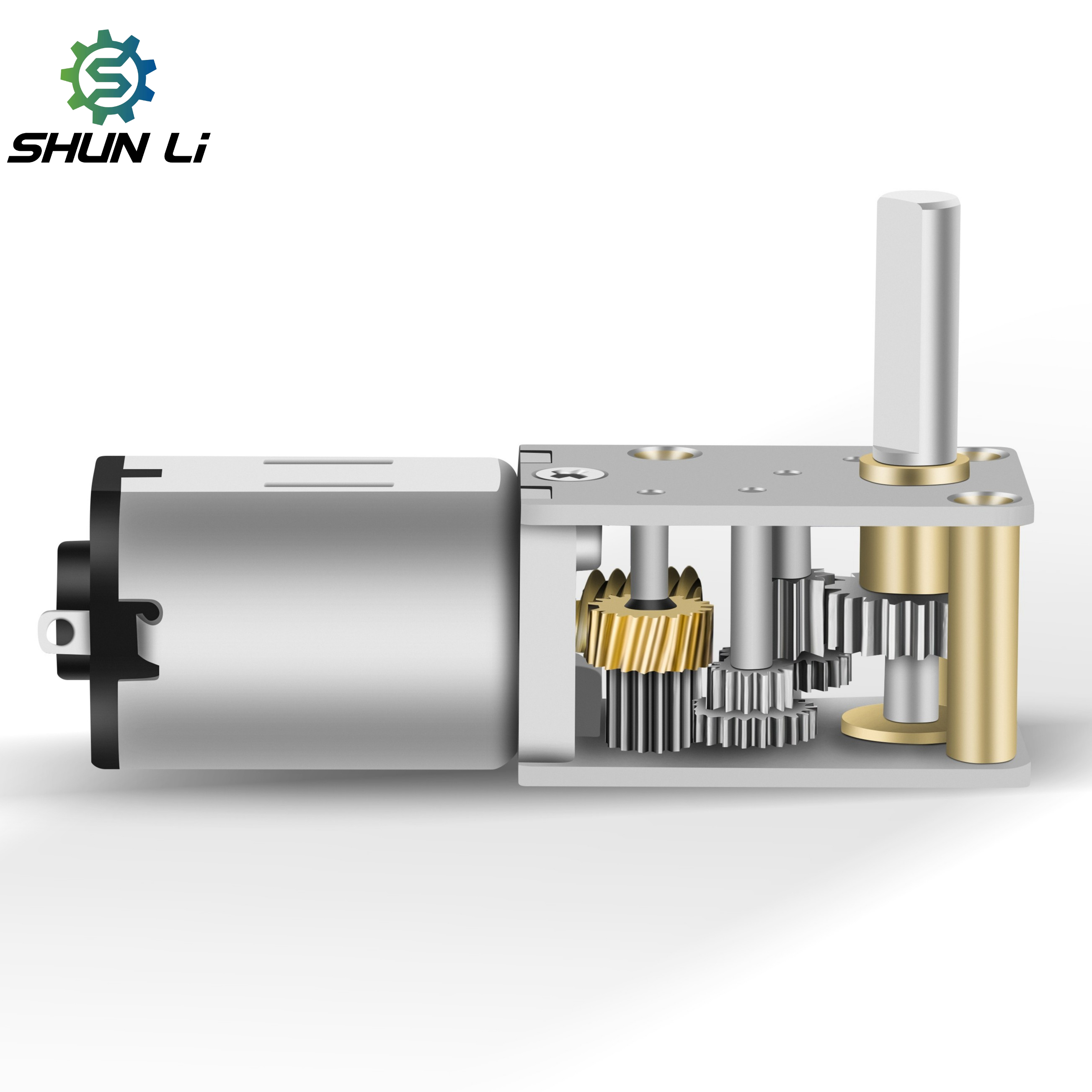

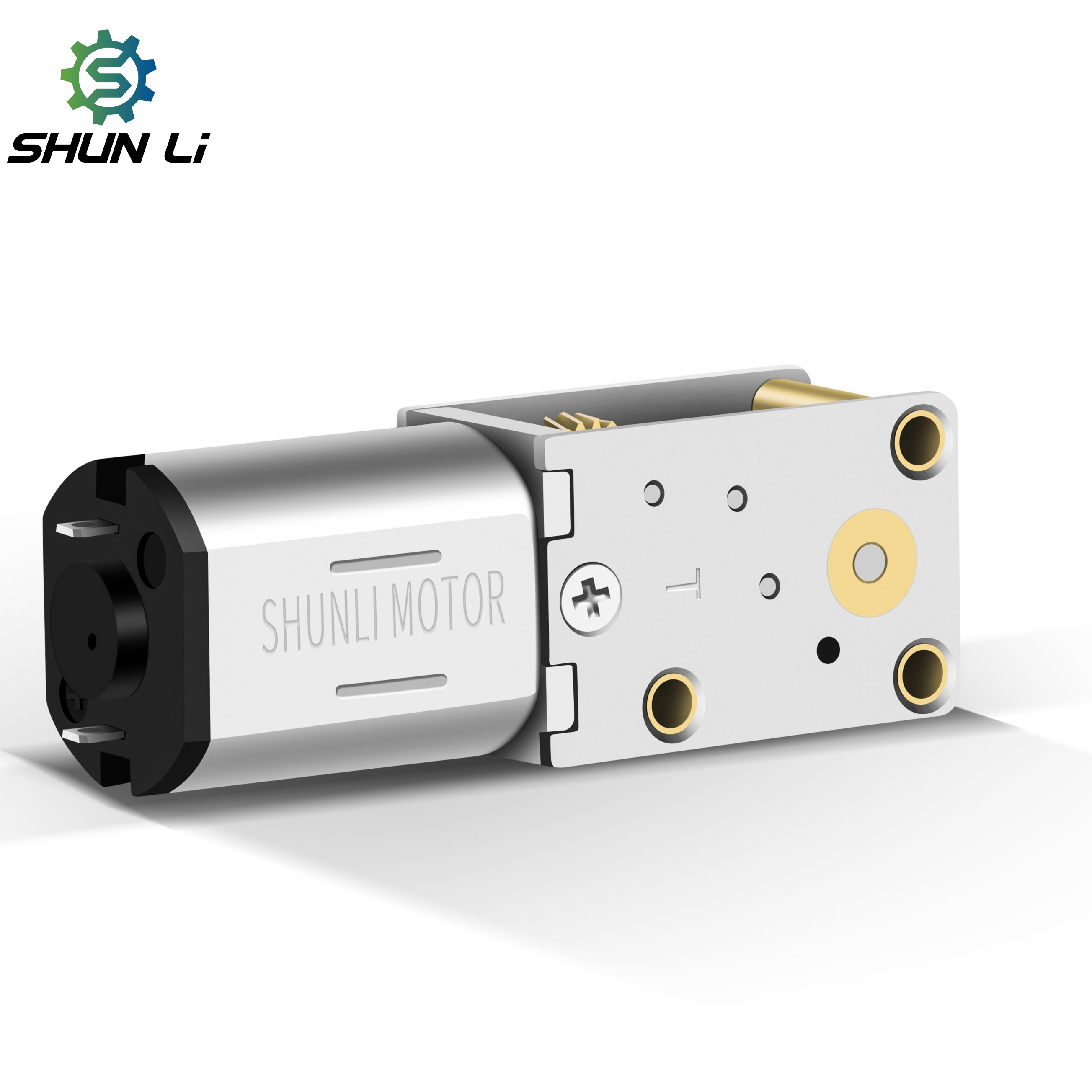

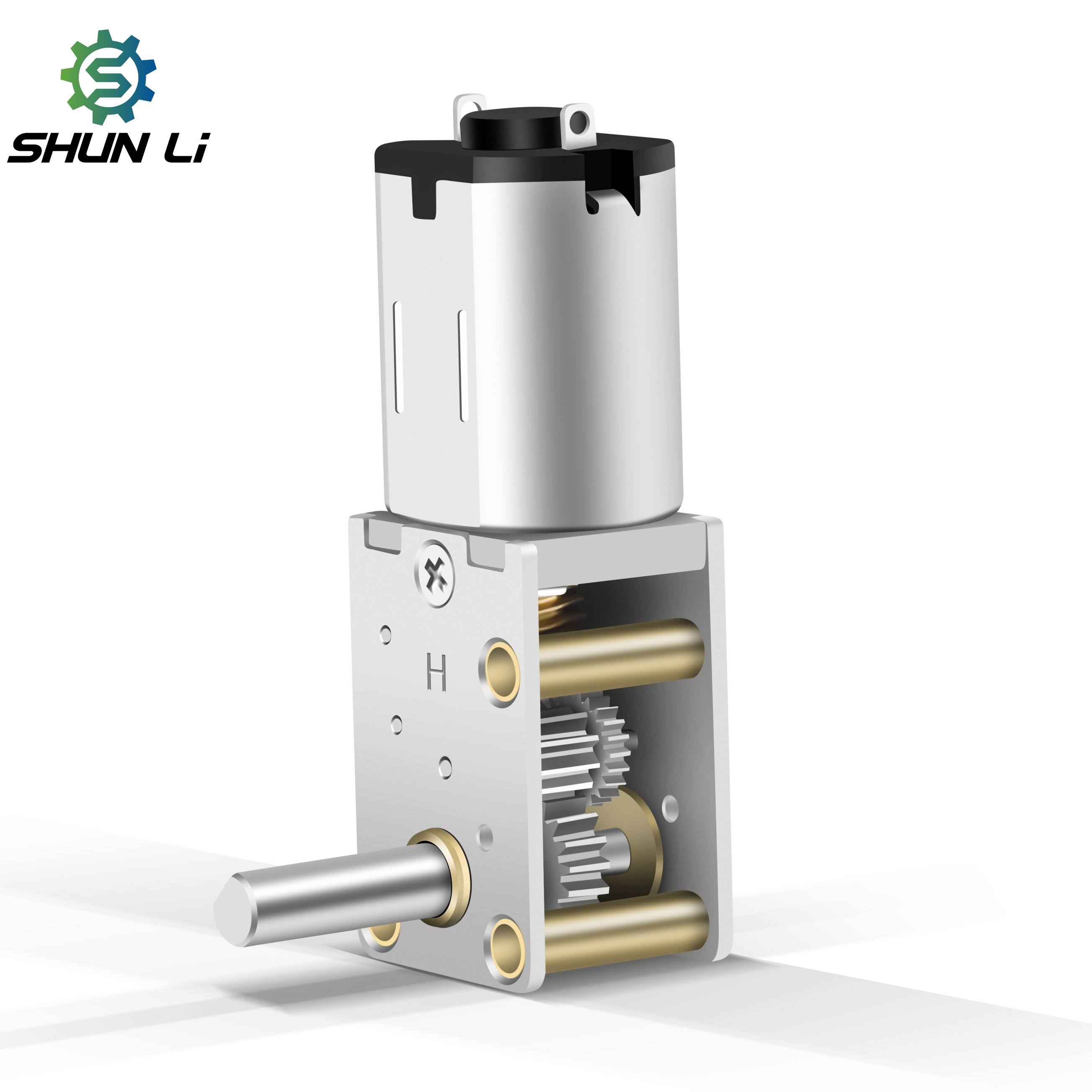

90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor for Electric Products
90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor for Electric Products
90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor for Electric Products
90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor for Electric Products
90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor for Electric Products
1 / 5
90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor for Electric Products
90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor for Electric Products
90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor for Electric Products
90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor for Electric Products
90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor for Electric Products

90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor for Electric Products

Send Inquiry

Product Description

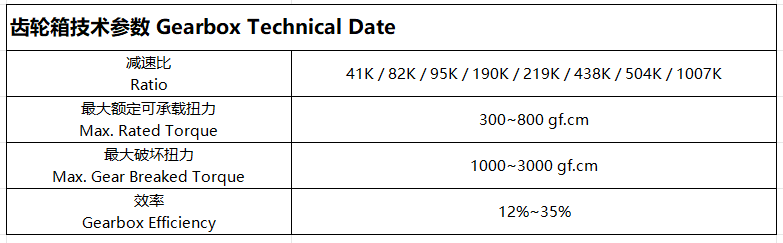

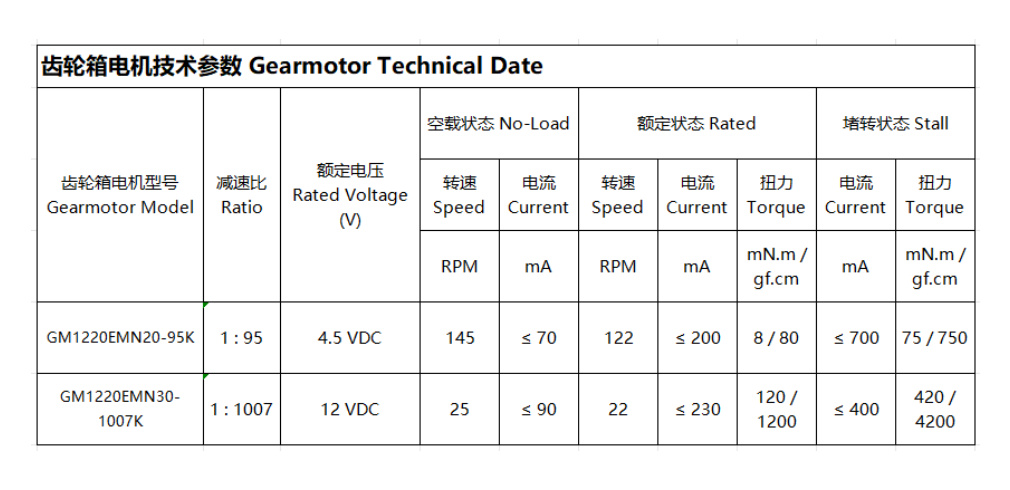

Technical Parameters
Product Model GM1220EMN20/N30

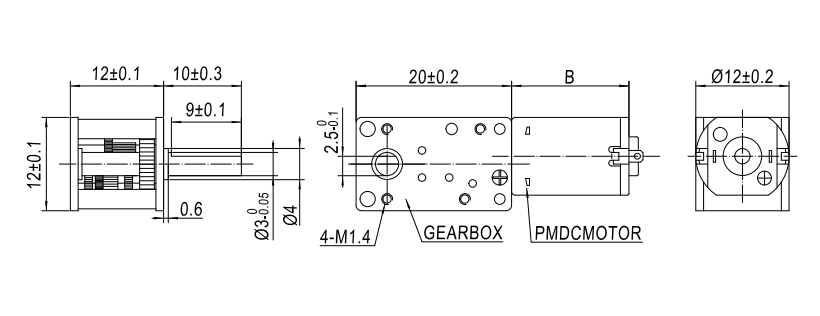

Gearbox Length 20±0.2mm
Speed Range 22RPM - 145RPM
Voltage Range 4.5V ~ 12V
Rated Torque 8 mN.m / 120 mN.m
Customization Transmission Dimensions and Motor Parameters can be customized
⚙️
High-Precision Engineering

Specialized in micro DC motors and gear motors with over 14 years of manufacturing expertise.

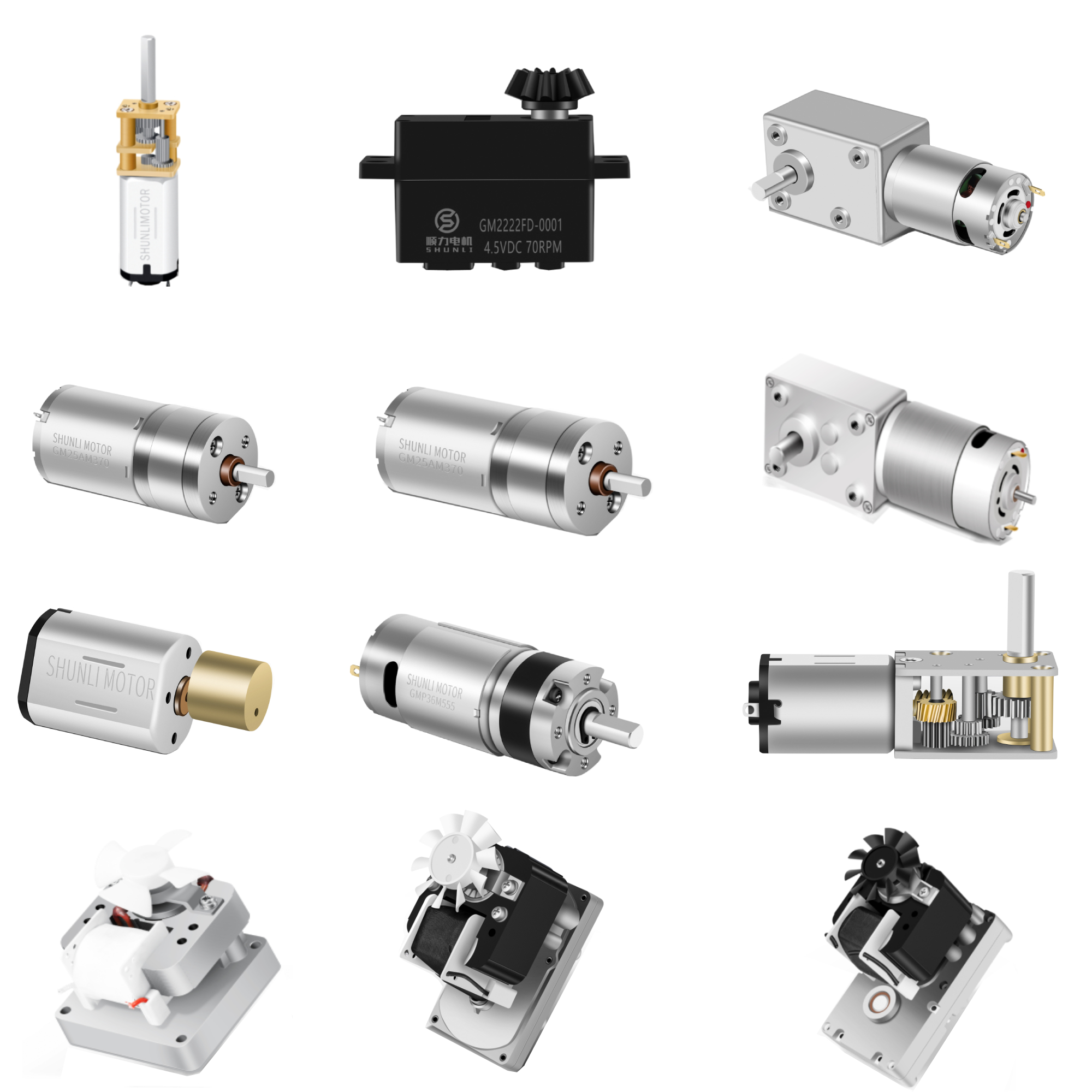

Product Showcase
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a factory specializing in micro DC motors and DC gear motors for more than 14 years.
What are the available payment terms for new customers?
We support various payment methods including Online Assurance Orders (Master Card, Visa), PayPal, and TT (Telegraphic Transfer).
Can you provide customized motor solutions?
Yes, we can fully customize motor parameters and transmission dimensions to meet your specific requirements.
What certifications do your products hold?
Our motors are certified with CE, FCC, ISO, and other standards. We can apply for additional certifications if required.
How do you ensure product quality control?

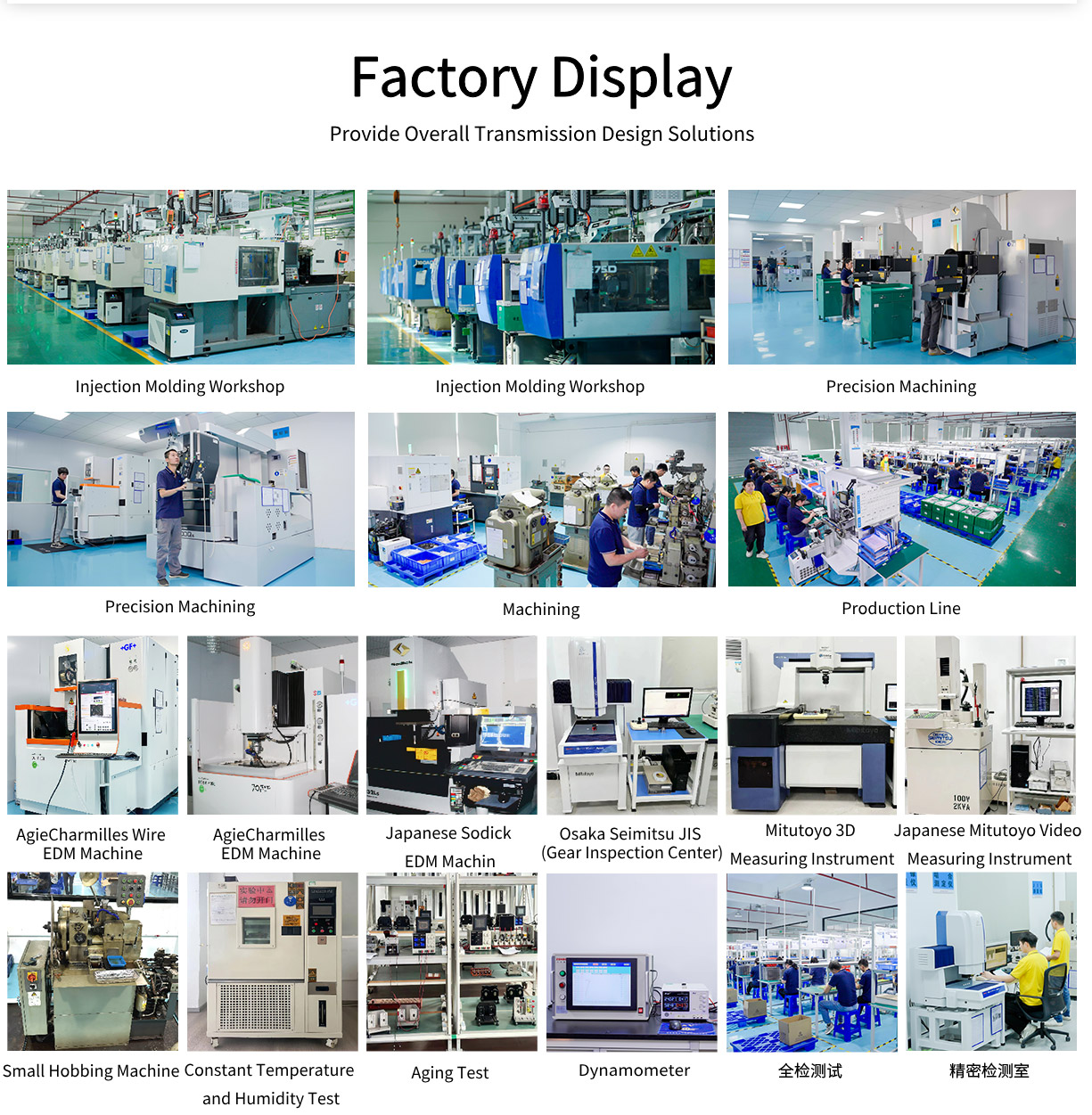

We employ professional inspection staff on every production line and use advanced testing equipment such as Hardness Testers, 2.5D Image Testers, and Salt Spray Chambers.
What testing equipment is used for the finished products?
Every finished motor undergoes comprehensive testing using Life Testers, Temperature Test Machines, and Noise Testers to ensure peak performance.
