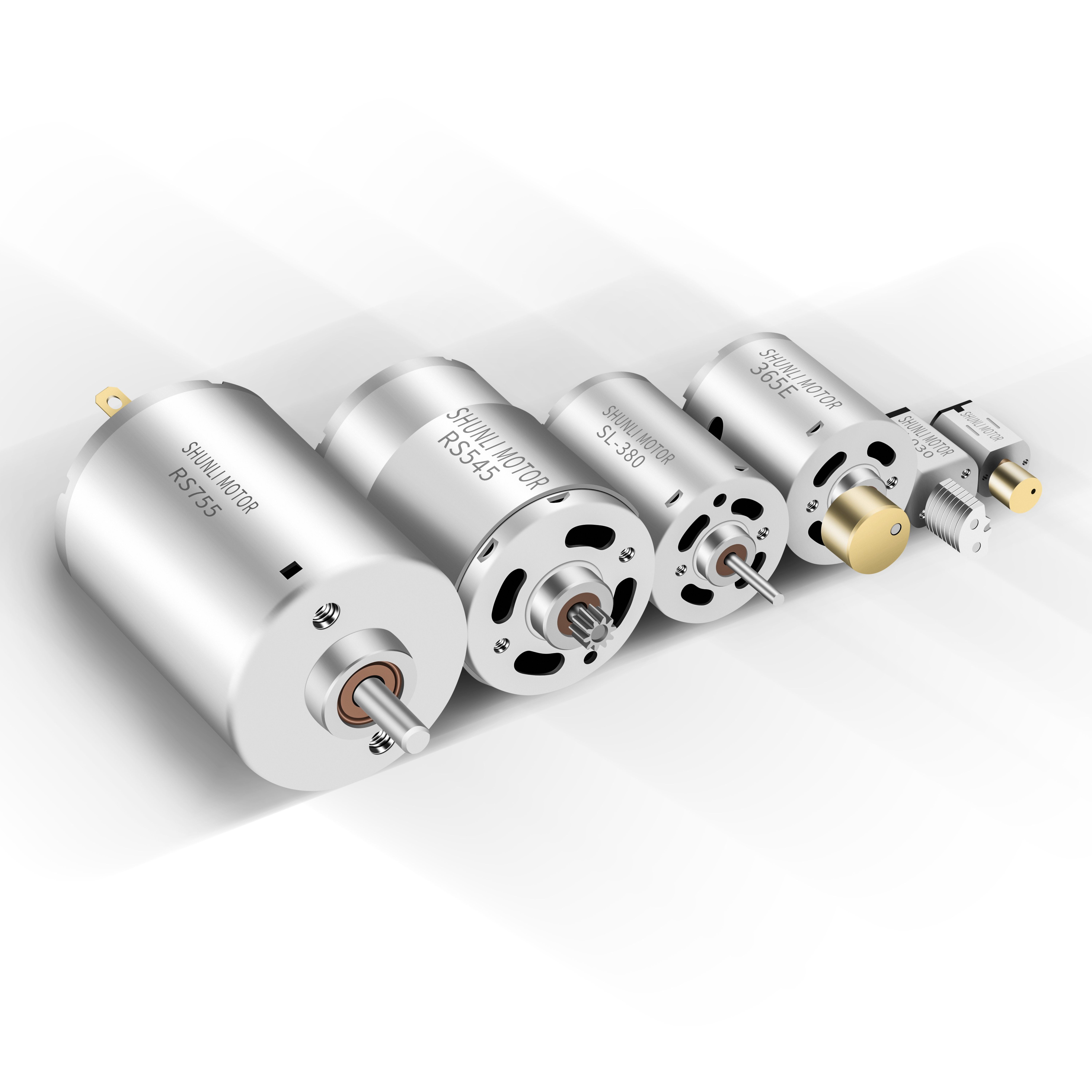

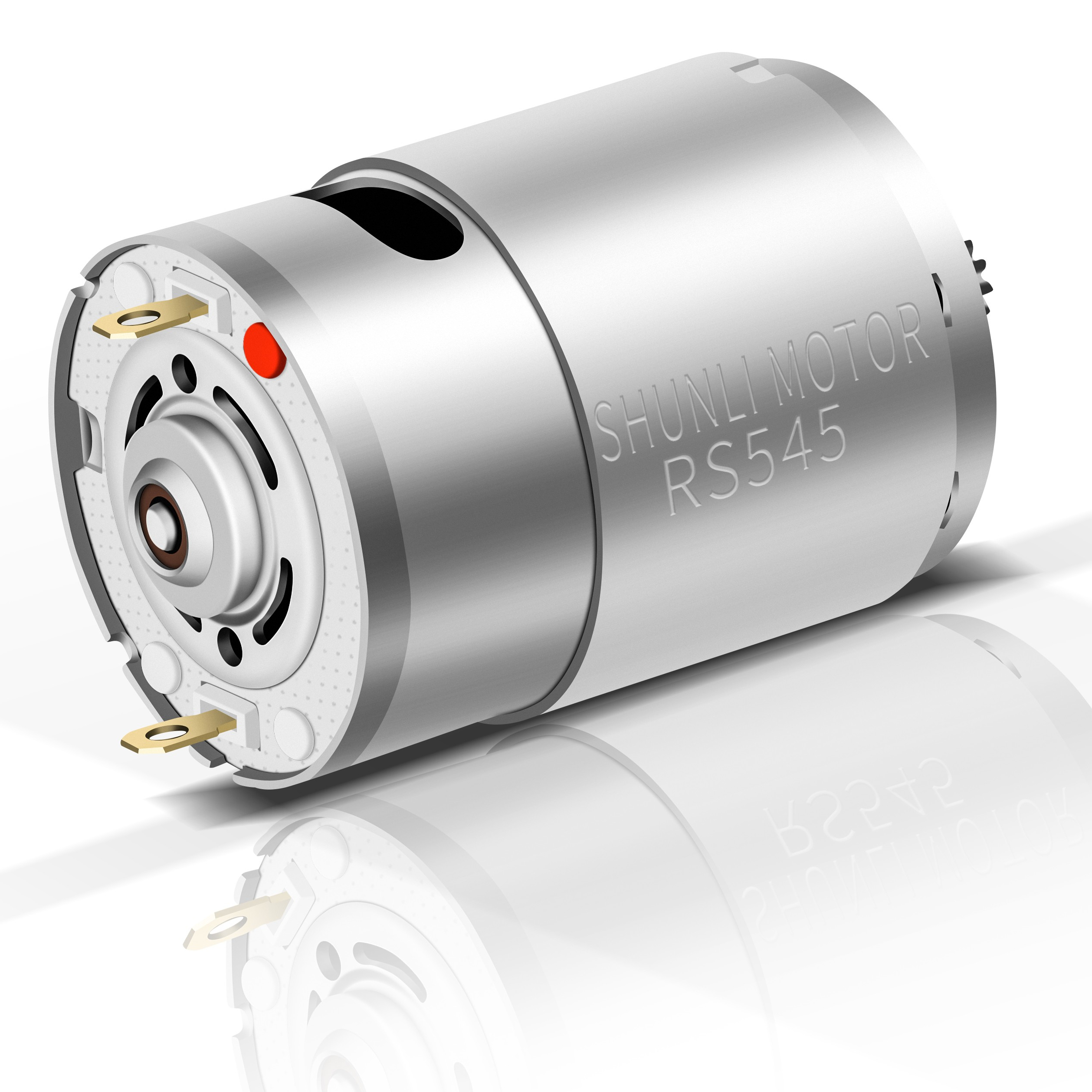

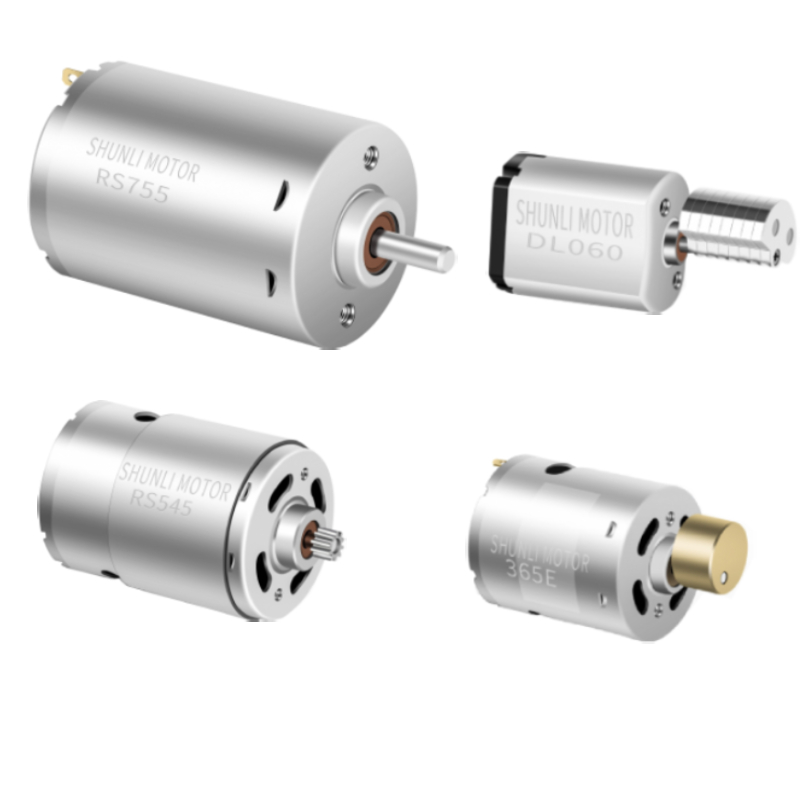

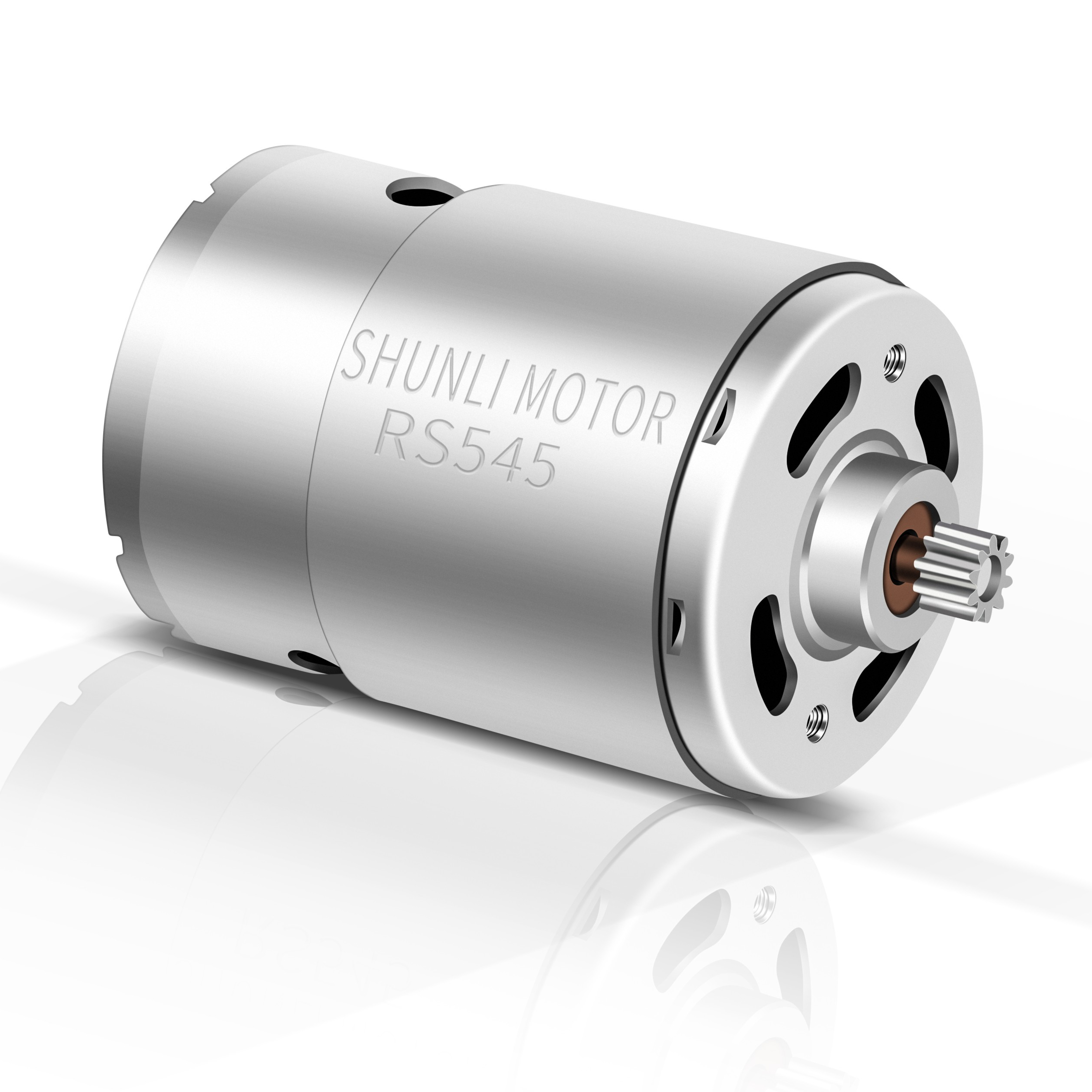

6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM
6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM
6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM
6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM
6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM
1 / 5
6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM
6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM
6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM
6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM
6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM

6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM

Send Inquiry

Product Description

RS 550 545 555 DC Motor
📋 Application & Overview
Application Usage

6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 30000RPM

Product Details

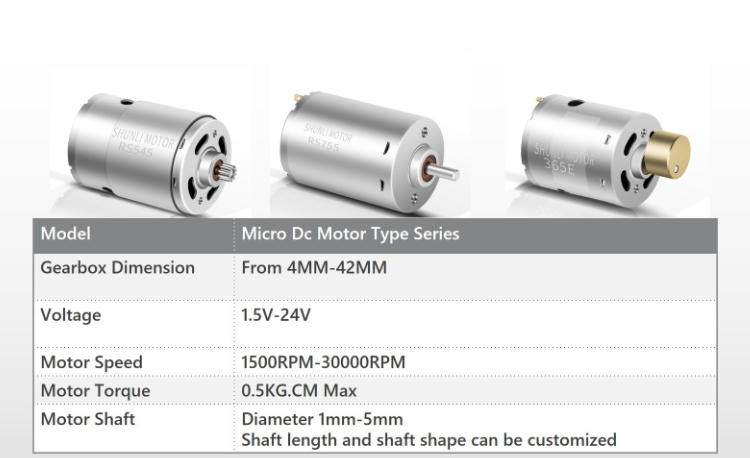

DC Motor Details
⚙ Motor Customized Specification is available upon request.
Model Rated Voltage (V) No-Load Rated
Series Spec Range Nominal Speed (RPM) Current (A) Speed (RPM) Current (A) Torque (mN.m) Power (W)
RS-550H 23128R 6.0~24.0 24VDC 4500 0.1 3932 0.39 25.7 10.6
6034 6.0~12.0 12VDC 16000 1.12 13613 4.96 25.6 40.36
RS-555H 3540 6.0~12.0 12VDC 7800 0.3 6708 1.84 21.9 15.35
23100 6.0~24.0 24VDC 7000 0.14 6004 0.77 19.2 12.09
------ RS - 545 A Dimension Drawing
RS-545 A Dimensions
Motor View 1
Motor View 2
Motor View 3
Motor View 4
Motor View 5
Motor View 6
Motor View 7
Motor View 8
Frequently Asked Questions
What is the voltage range for these RS series DC motors?
The RS-545, 550, and 555 motors support a wide operating voltage range, typically from 6V to 24V DC, depending on the specific model and winding configuration.
Can the output shaft and speed be customized?
Yes, technical specifications such as speed (RPM), torque, and shaft dimensions can be customized to meet your specific application requirements.
What is the maximum speed these motors can reach?
High-speed versions of these motors can reach up to 15,000 RPM to 30,000 RPM, making them suitable for power tools and high-velocity equipment.
What are the typical applications for these PMDC motors?
These motors are commonly used in cordless drills, vacuum cleaners, automotive parts, model aircraft, and various industrial automation tools.
How do I choose between the RS-550 and RS-555 models?
The choice depends on your power and space requirements. The RS-555 generally offers different torque characteristics compared to the RS-550. Please refer to the technical data table for specific comparisons.
Do these motors support bidirectional rotation?
Yes, as Permanent Magnet DC (PMDC) motors, the direction of rotation can be reversed by simply switching the polarity of the power supply.
