DyneticPro Motor
1 / 5

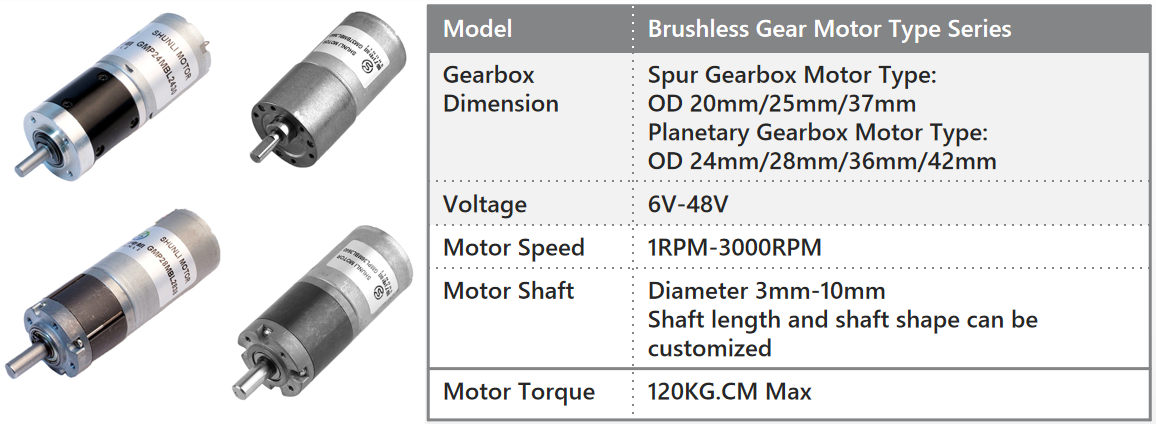

| Ratio | 3.4K - 5184K |
| Max. Rated Torque | 0.5 ~ 120Kgf.cm |
| Max. Gear Breaked Torque | 180 Kgf.cm |
| Gearbox Efficiency | 45% ~ 95% |
| Gearmotor Model | Ratio | Rated Voltage | No-Load | Rated | Stall | ||||
|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Current | Torque | Current | Torque | |||
| RPM | mA | RPM | mA | mN.m / gf.cm | mA | N.m / Kgf.cm | |||
| GM25AMBL2430-217K | 1:217 | 12 VDC | 18 | ≤120 | 15 | ≤200 | 0.45 / 4.5 | ≤950 | 0.21 / 2.1 |
| GM37BMBL3657-113QK | 1:113 | 24 VDC | 58 | ≤400 | 48.5 | ≤1400 | 3.0 / 30 | ≤7000 | 10 / 100 |
| GMP36MBL3640-27K | 1:27 | 24 VDC | 185 | ≤300 | 150 | ≤750 | 0.45 / 4.5 | ≤3000 | 2.25 / 22.5 |
| GMP42MBL4260-325K | 1:245 | 24 VDC | 10 | ≤300 | 8 | ≤1200 | 6N.M / 60KG.CM | ≤4800 | 20 / 200 |

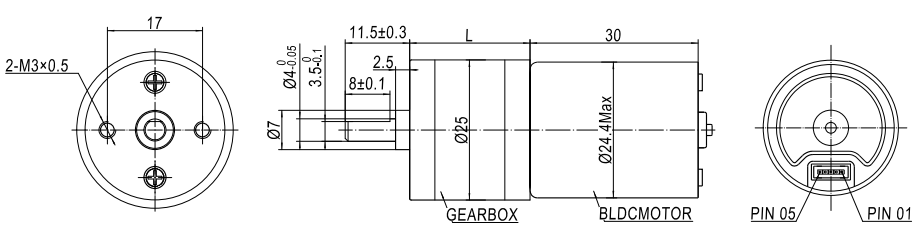

GM25 Motor Type

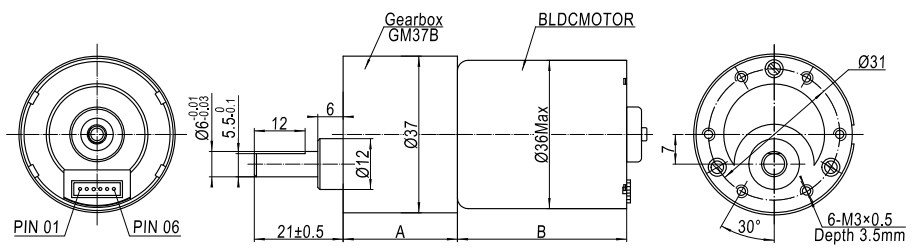

GM37 Motor Type

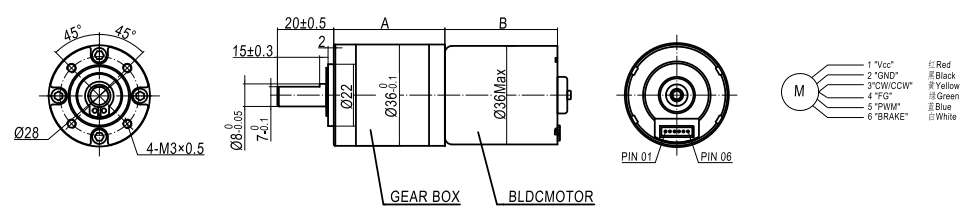

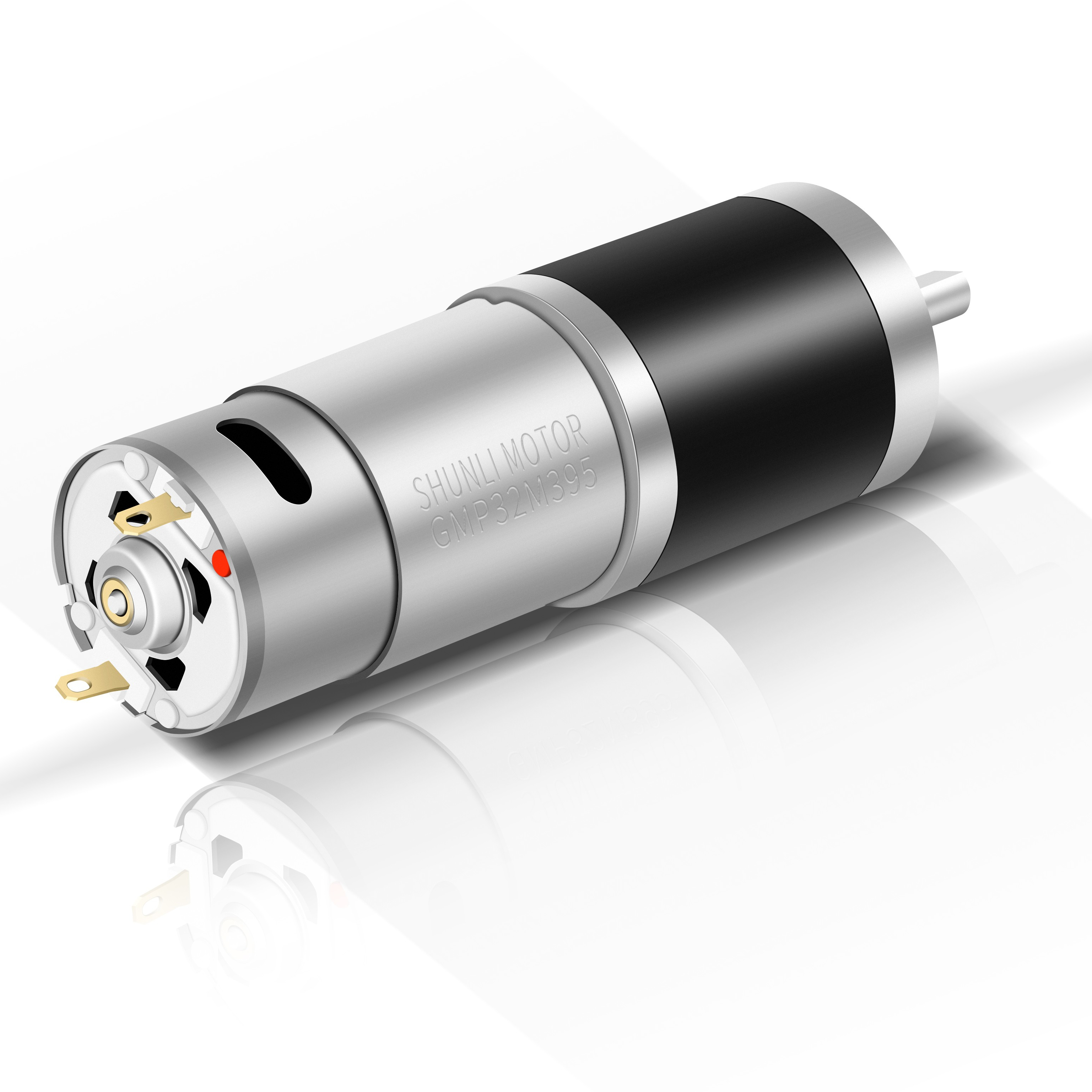

GMP36 Planetary Type

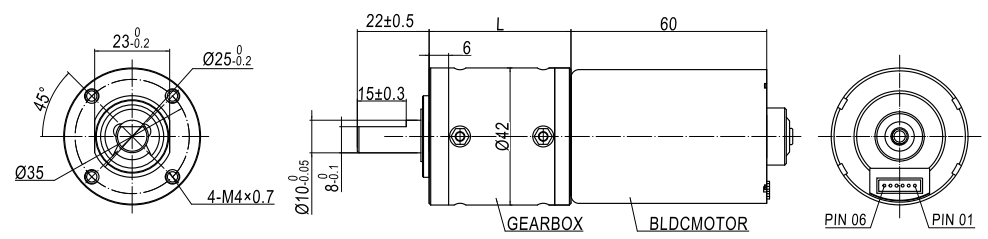

GMP42 Planetary Type
Established in 2005, our facility is a high-tech enterprise integrating the research, development, production and sales of various kinds of micro DC motors, geared motors, planetary geared motors, shade pole geared motors and special gearbox motors. Products are widely used in automobiles, communications equipment, smart home, medical equipment, intelligent security, household appliances, and other high-end transmission structures, exported to more than 50 countries and regions.

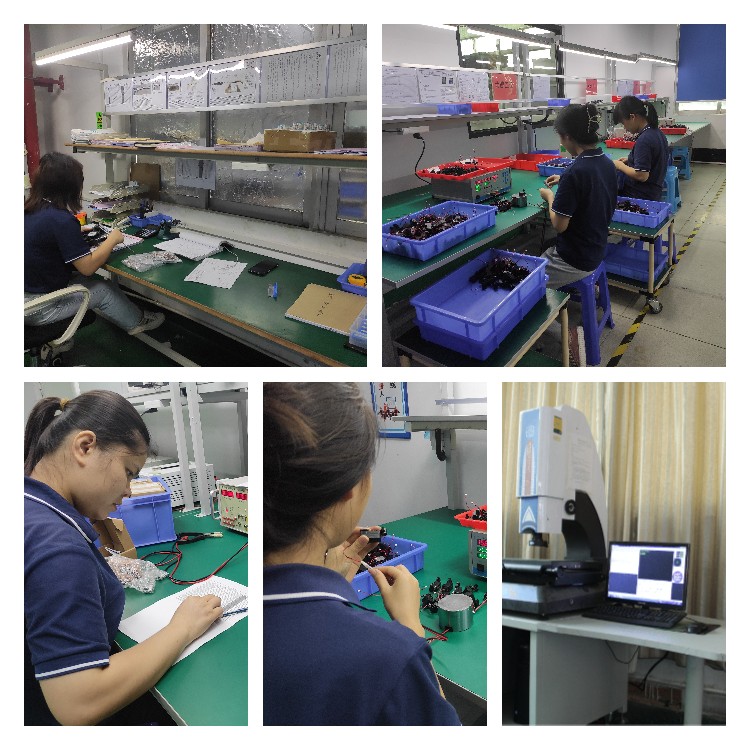

In order to confirm quality, from received material to shipment, every step is carefully checked. Quality is the basis of our development.
