Motor Specifications Can Be Fully Customized Upon Request.
| Parameter | Technical Specifications |
|---|---|
| Ratio | 199K / 241K / 265K |
| Max. Rated Torque | 1.5 ~ 2.5 Kgf.cm |
| Max. Gear Breaked Torque | 4 ~ 5 Kgf.cm |
| Gearbox Efficiency | 45% ~ 60% |
| Gearmotor Model | Ratio | Rated Voltage (V) | No-Load | Rated | Stall | ||||
|---|---|---|---|---|---|---|---|---|---|
| Speed (RPM) | Current (mA) | Speed (RPM) | Current (mA) | Torque (mN.m / gf.cm) | Current (mA) | Torque (N.m / Kgf.cm) | |||

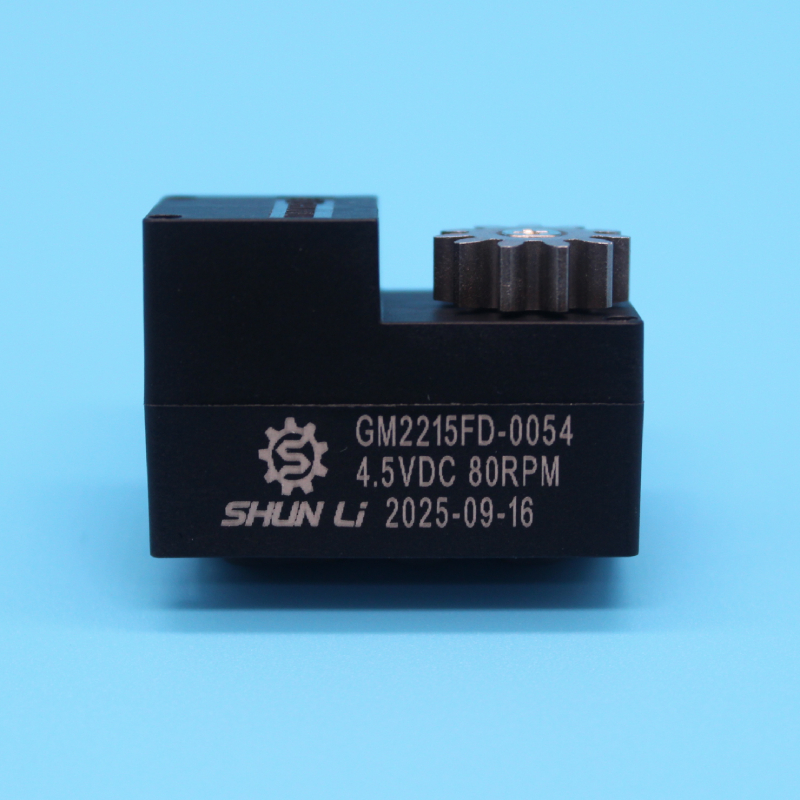

| GM2215FMN20-199K | 1 : 199 | 4.5 VDC | 52 | ≤ 50 | 40 | ≤ 120 | 18 / 180 | ≤ 350 | 0.18 / 1.8 |
| GM2222FMN20-230K | 1 : 230 | 58 | ≤ 78 | 49 | ≤ 135 | 24 / 240 | ≤ 450 | 0.2 / 2.0 | |

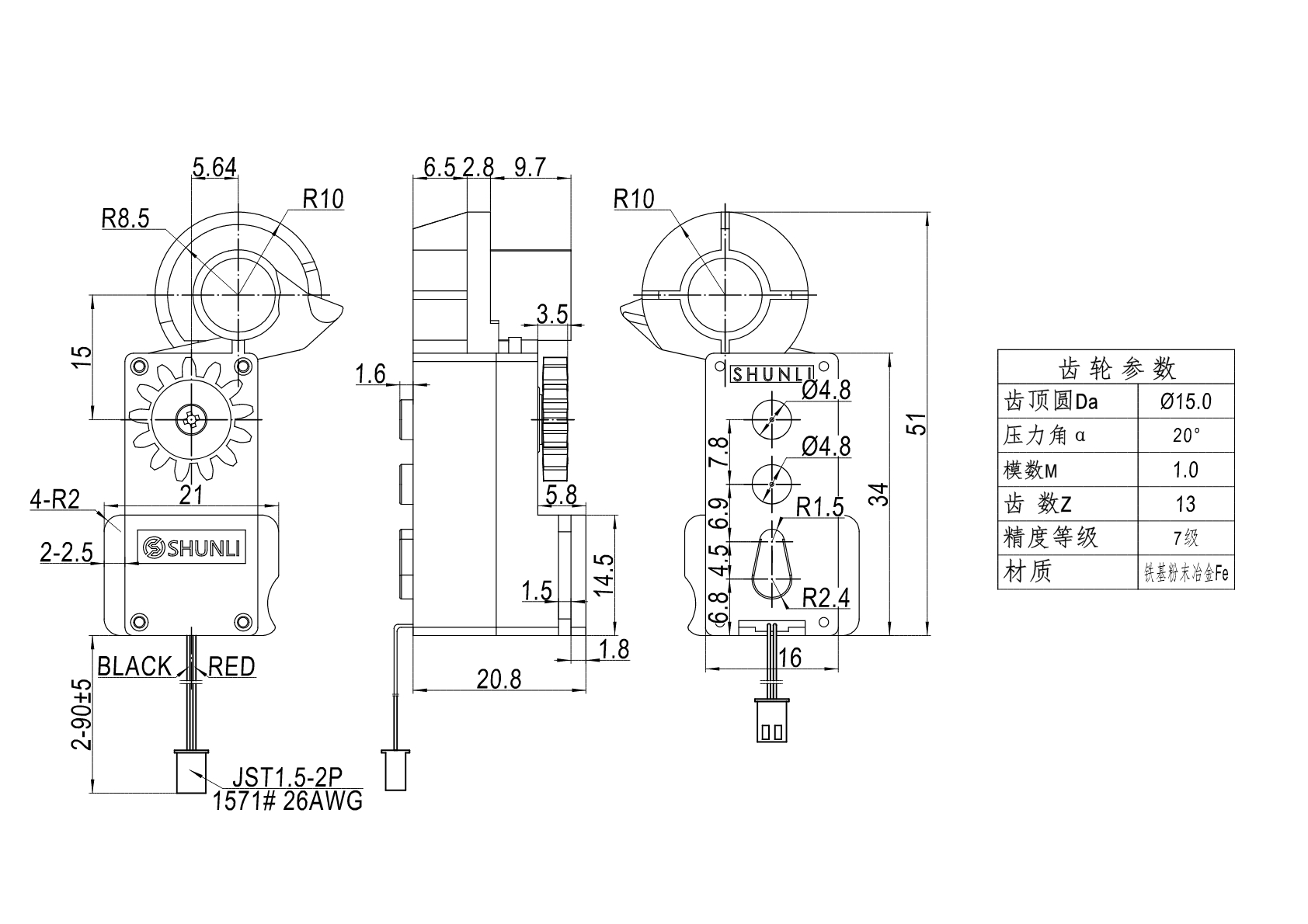

| GM2219FMN20-265K | 1 : 241 | 58 | ≤ 65 | 50 | ≤ 130 | 24 / 240 | ≤ 680 | 0.2 / 2.0 | |
| GM2219FMN20-265K | 1 : 241 | 62 | ≤ 75 | 51 | ≤ 140 | 35 / 350 | ≤ 750 | 0.22 / 2.2 | |
Looking forward to your feedback!
We are a factory. We specialize in micro DC motors and DC gear motors with more than 14 years of professional experience.
We accept secure online transactions, including major credit cards, PayPal, and T/T wire transfers.
Yes, we provide custom configurations matching our customer's specific technical parameters and dimensions.
Yes, we possess CE, FCC, ISO, and other relevant industry certifications. Other specific certification requirements can be applied for as needed.

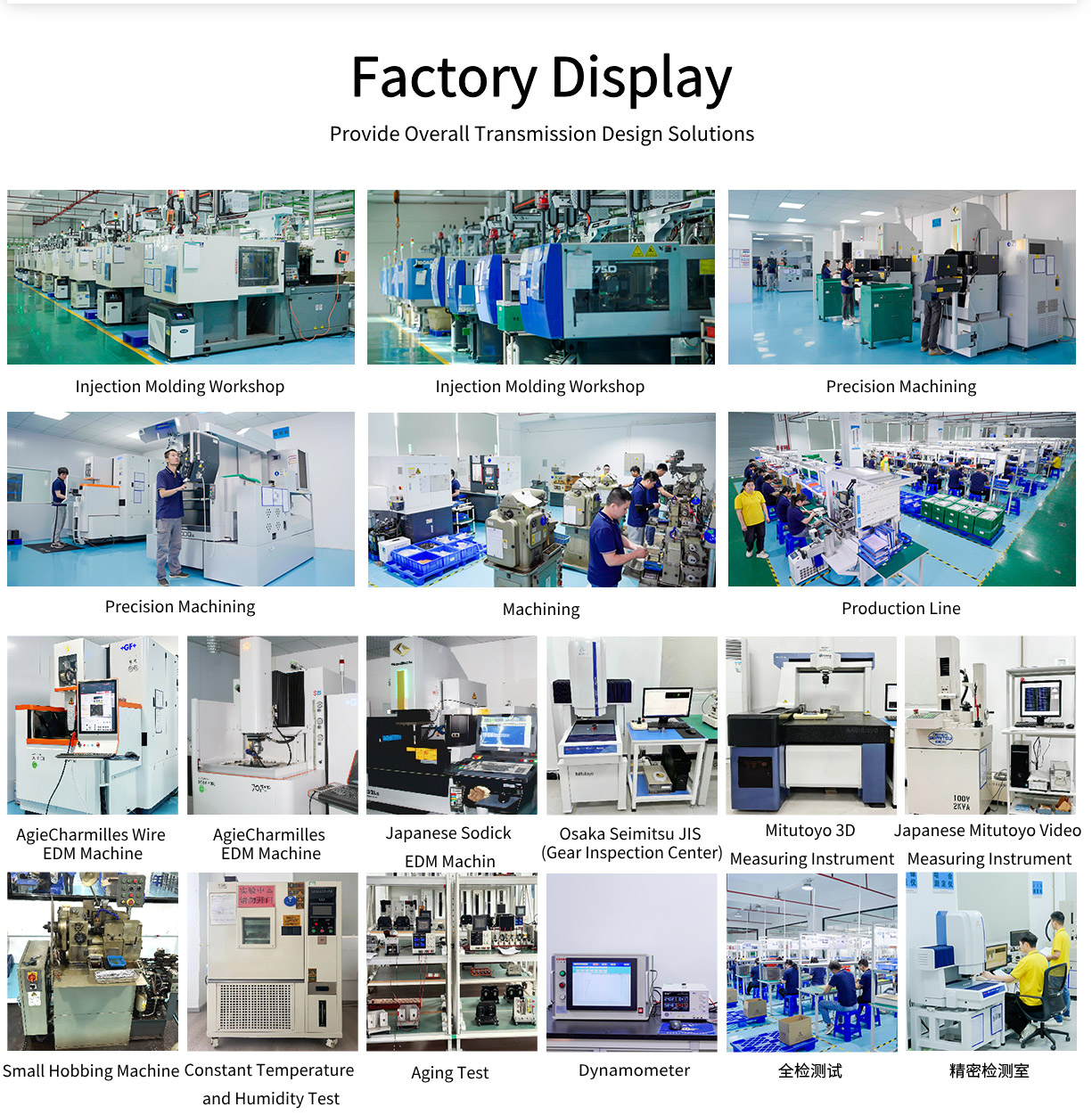

We have QC inspectors stationed on every production line. Final products are thoroughly tested using advanced testing equipment, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers.
The typical lead time for custom sample design and production ranges between 2 to 4 weeks depending on structural and electrical requirements.
