BLDC MOTOR Terminations
| PIN NO. | PIN Arrangement |
|---|---|
| 1 | VCC |
| 2 | FG |
| 3 | CW/CCW |
| 4 | GND |
| 5 | PWM |
|

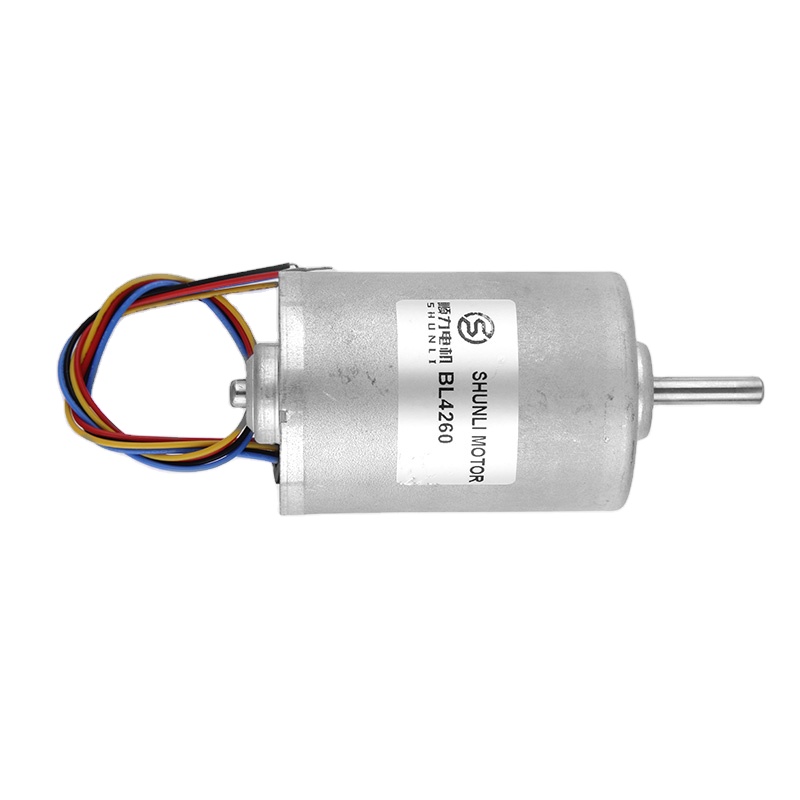

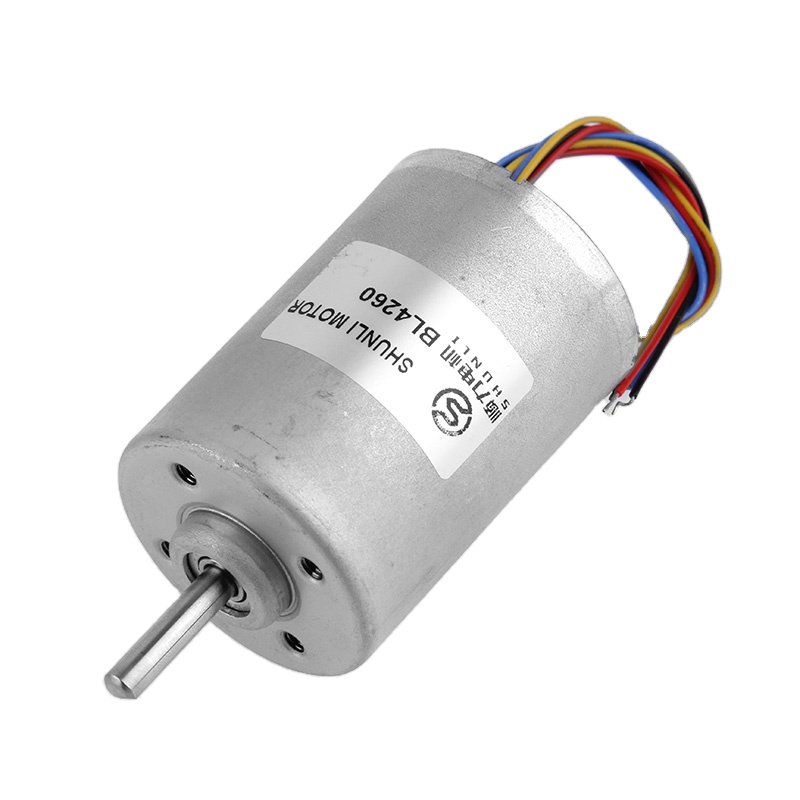

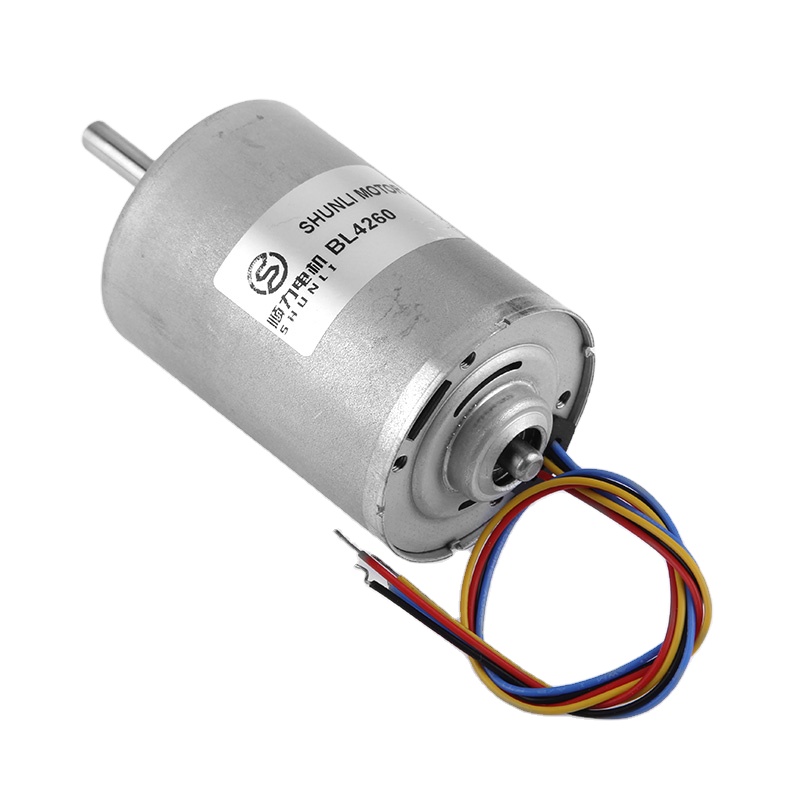

This power brushless DC motor is available in 12v, 18v, and 24v operating voltages.
The motor supports rated speeds of 1500 RPM, 3000 RPM, and 4000 RPM depending on your choice and system setup.
It is highly suitable for washing machines, RC planes, DIY technical tools, fans, robots, pumps, and other precision applications.
The termination layout consists of 5 pins: Pin 1 (VCC), Pin 2 (FG), Pin 3 (CW/CCW), Pin 4 (GND), and Pin 5 (PWM).
Yes, we support customized specifications for the motor to meet your specific engineering requirements. Please reach out to us with your details.
