| PMDC MOTOR Technical Data | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| PMDC MOTOR Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||||
| Operating Range | Nominal | Speed (RPM) | Current (mA) | Speed (RPM) | Current (mA) | Torque (mN.m / gf.cm) | Power (W) | Current (mA) | Torque (mN.m / gf.cm) | ||
| FF-N20VA | 05240 | 3.0~12.0 | 12 VDC | 16100 | 15 | 12240 | 60 | 0.3/3 | 0.37 | 210 | 1.2/12 |
| 08260 | 2.0~5.0 | 5 VDC | 14600 | 30 | 11800 | 110 | 0.26/2.6 | 0.31 | 470 | 1.3/13 | |
| FF-N20TA | 2818 | 0.8~1.5 | 12 VDC | 34000 | 70 | 31000 | 1140 | 0.2/2 | 0.64 | 6000 | 1.6/16 |
We specialize in producing motors for more than 14 years. Our professional R&D team and mature management will bring you a pleasant experience.
In order to confirm quality, from the raw material received to the final shipment, we carefully check every step of the way. Quality is the basis of our development.

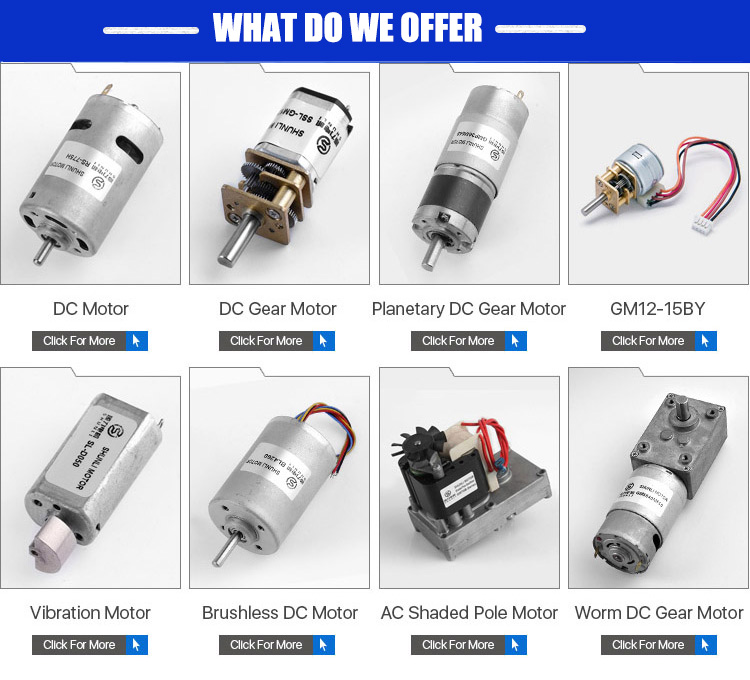

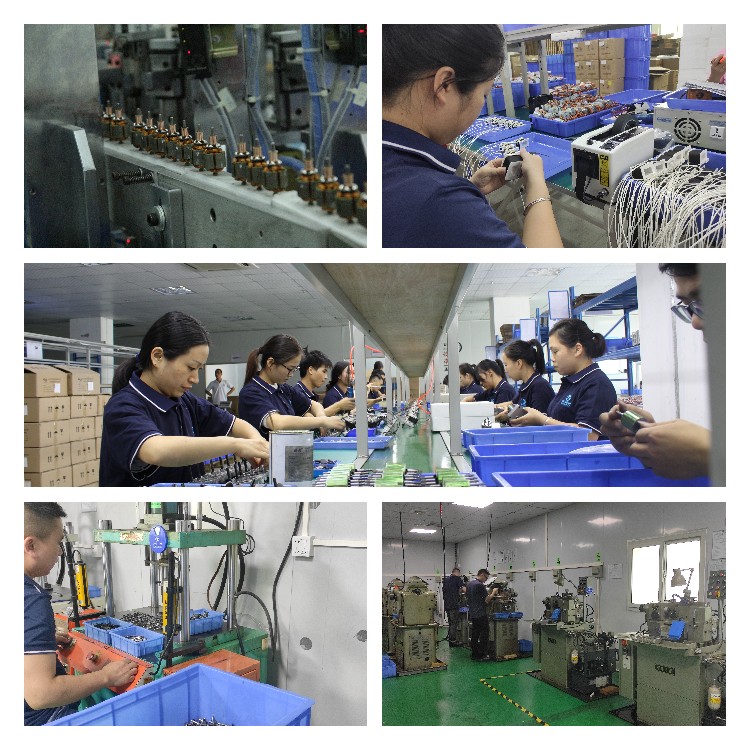

We are a factory. We specialize in micro DC motors and DC gear motors for more than 14 years.
We can arrange payment online via credit card (MasterCard, Visa, etc.), PayPal, or T/T wire transfer.
Yes, we can customize a suitable motor according to our customers' specific requirements.
Yes, we have CE, FCC, ISO, and other relevant industry certifications. If you need other specific certificates, we can apply for them on your behalf.

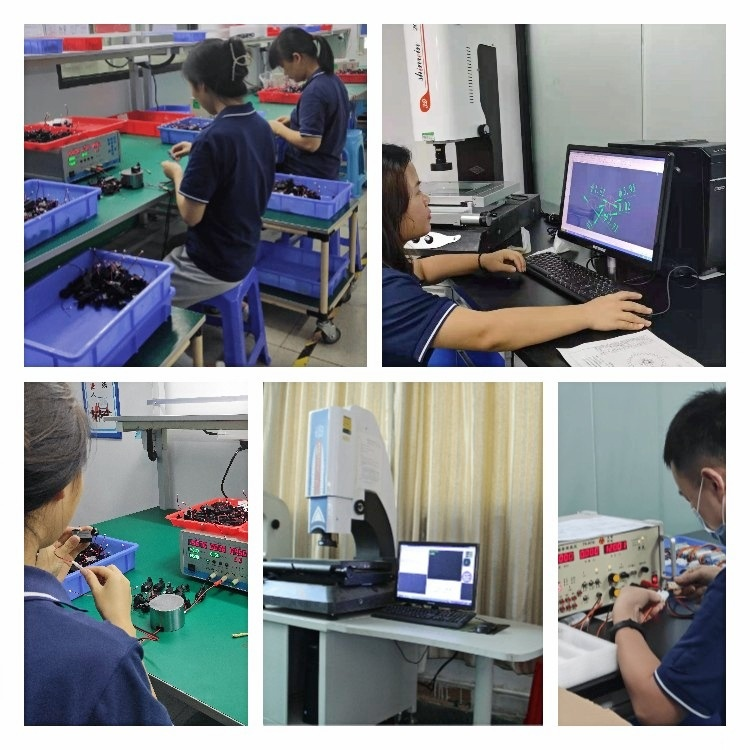

We have professional checking staff on every production line process. After finishing the motor assembly, we run complete tests using equipment such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Chambers, and Noise Testers.

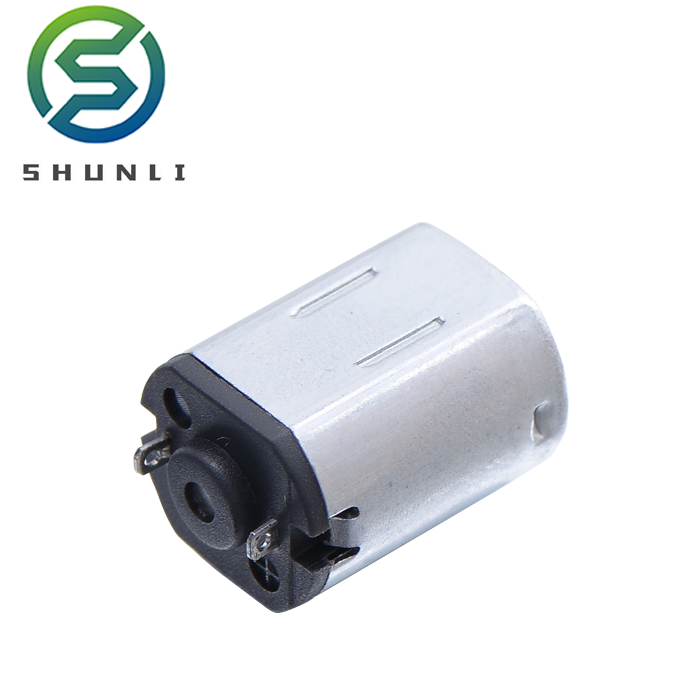

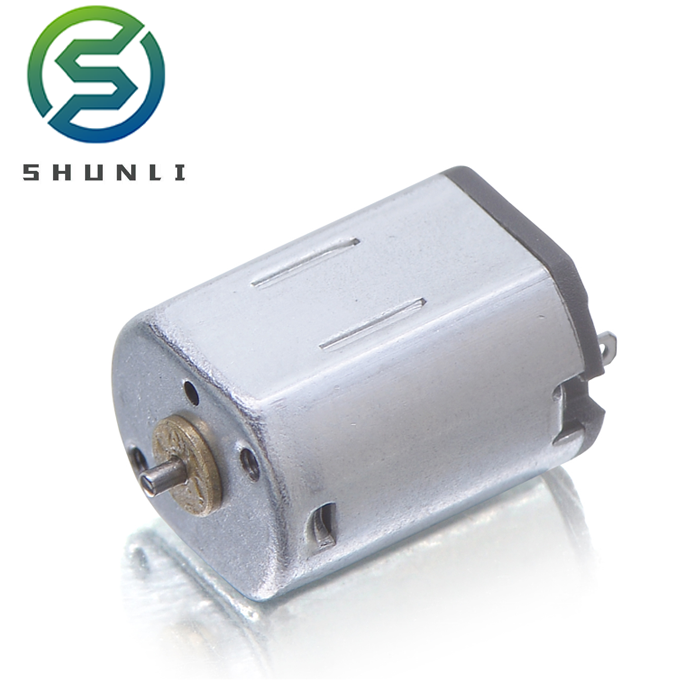

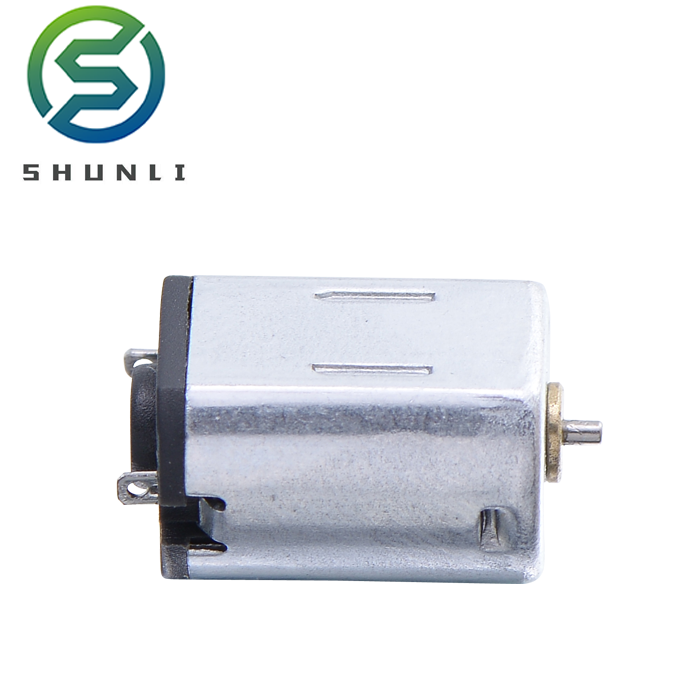

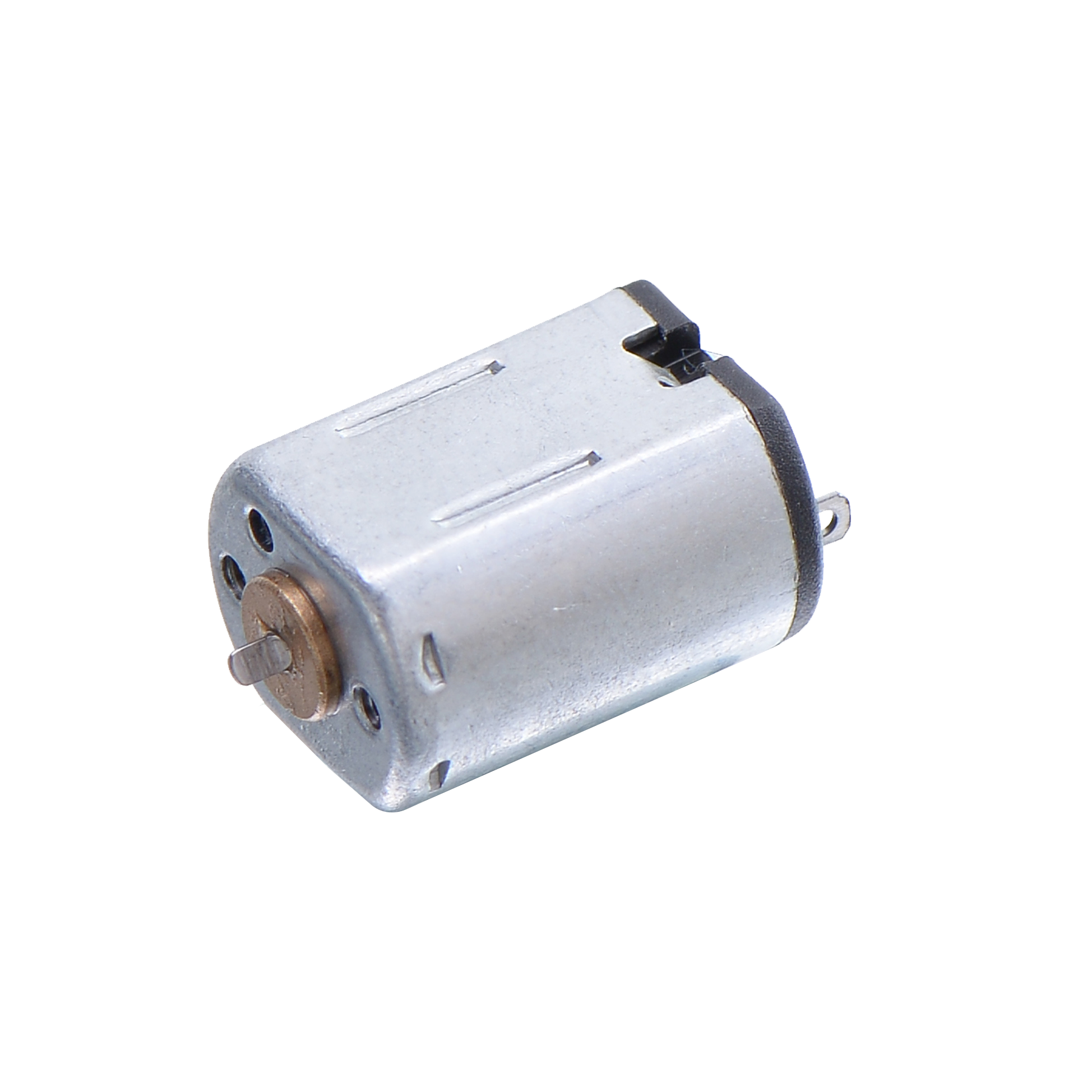

We offer customized models in 1.5V, 3V, 4.5V, 5V, and up to 12V operating ranges to suit various lock and mini-electric applications.
