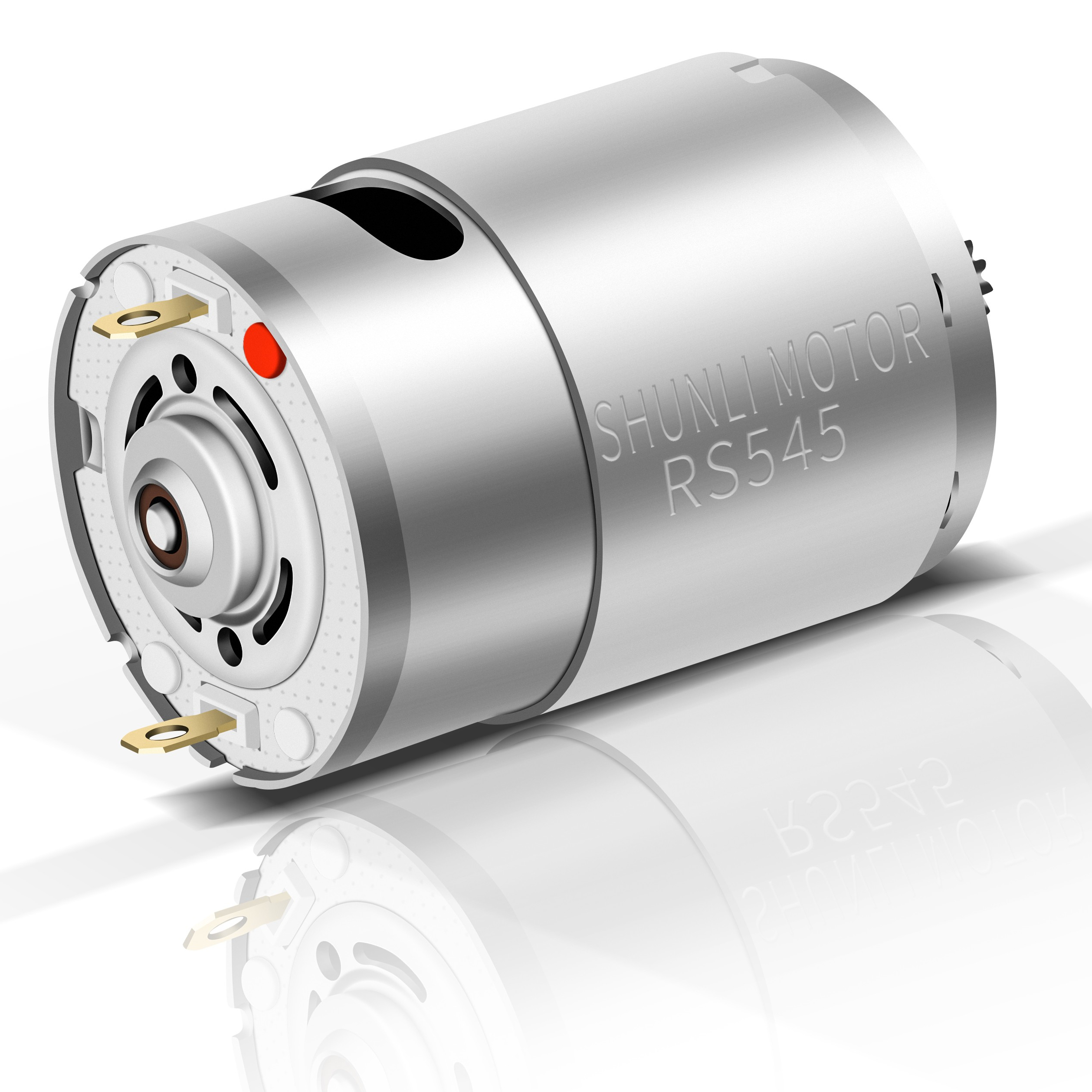

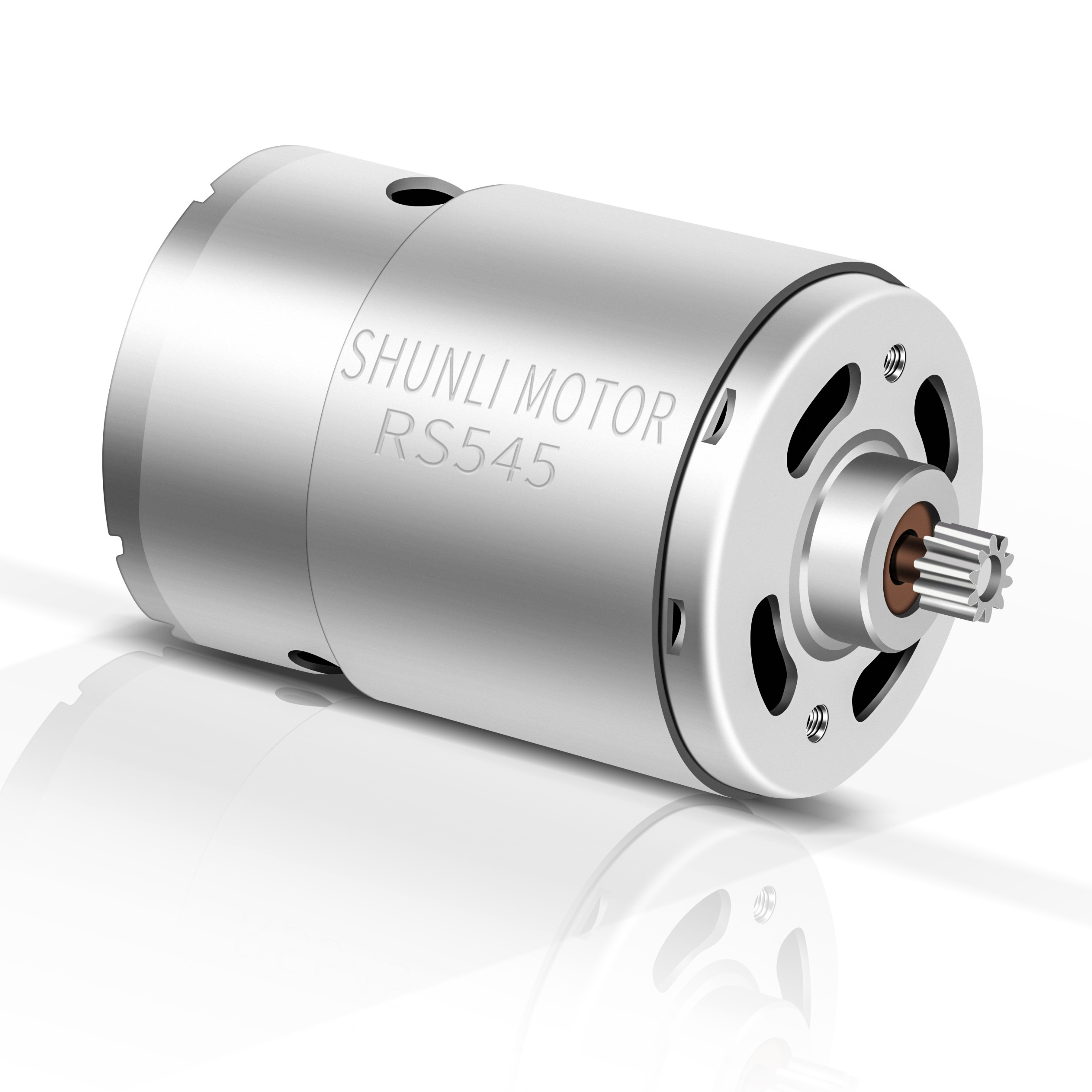

6v 12v 24v Micro Motor Electric Car Motor Micro Dc Motor

Product Description

6v 12v 24v micro motor electric car motor micro dc motor

Product Details

Motor Customized Specification, Please contact me.

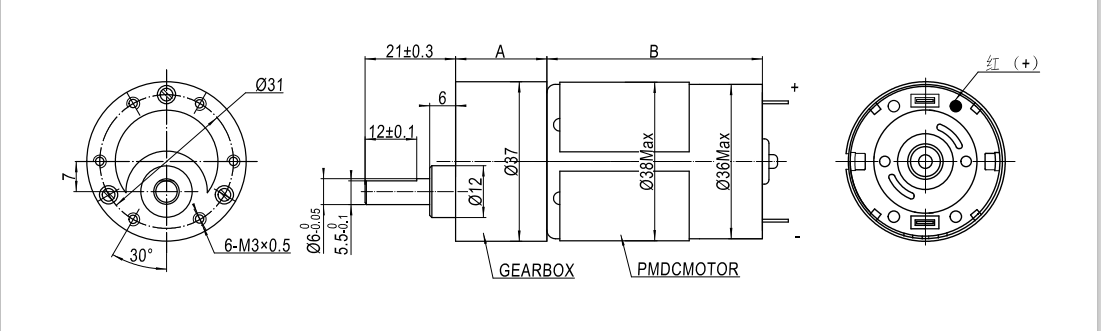

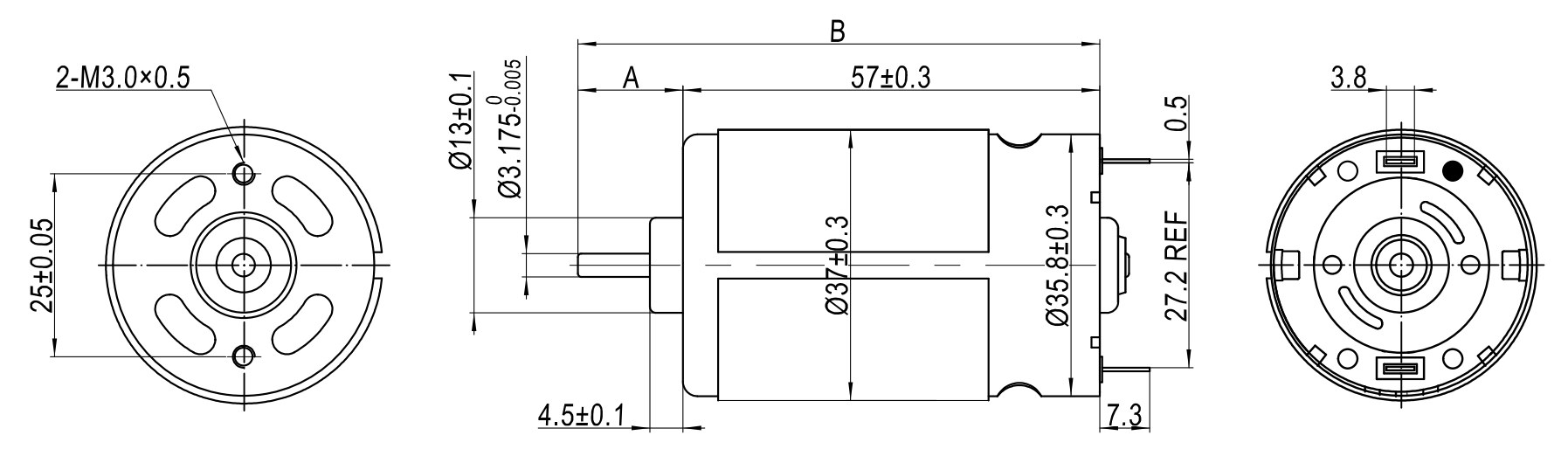

Reference Drawing

RS - 545 A

RS - 555 A

RS - 575 A

The length of shaft can be customized, Please contact me.

Reference Datasheet

PMDC MOTOR Technical Data
Model		Rated Voltage (V)		No-Load		Rated				Stall
Model		Operating Range	Nominal	Speed	Current	Speed	Current	Torque	Power	Current	Torque
		V	V	RPM	A	RPM	A	mN.m / gf.cm	W	A	mN.m / gf.cm
RS-550H	23128R	6.0~24.0	24VDC	4500	0.1	3932	0.39	25.7/262	10.6	4.8	204/2080
RS-550H	6034	6.0~12.0	12VDC	16000	1.12	13613	4.96	25.6/261.3	40.36	48.89	281.4/2870
RS-555H	3540	6.0~12.0	12VDC	7800	0.3	6708	1.84	21.9/223.4	15.35	11.31	156/1591
RS-555H	23100	6.0~24.0	24VDC	7000	0.14	6004	0.77	19.2/195.8	12.09	4.2	124.5/1270

Recommend Product

Frequently Asked Questions

What voltage configurations are available for these micro DC motors?

Our micro DC motors are available in standard operating ranges between 6.0V, 12.0V, and 24.0V to accommodate various project requirements including electric car models and smart appliances.

Can the motor specifications and shaft dimensions be customized?

Yes. Both the motor specifications (voltage, speed, current, and torque) and physical dimensions like shaft length can be fully customized to meet your application needs.

What are the typical applications for these micro DC motors?

These motors are highly versatile and widely used in toy electric cars, home automated systems, smart gear mechanisms, medical devices, and other compact high-torque applications.

How do RS-550H and RS-555H models differ in performance?

The models differ in operational parameters such as no-load speed, rated torque, and power output. For example, the RS-550H 6034 offers up to 16000 RPM at 12VDC, whereas the RS-555H 3540 provides 7800 RPM at 12VDC. Please consult the datasheet table above for full comparison.

Are technical datasheets and drawings available for download?

Yes, technical dimensions and parameters for RS-545A, RS-555A, and RS-575A are provided under the respective reference section above to assist in your system integration.
