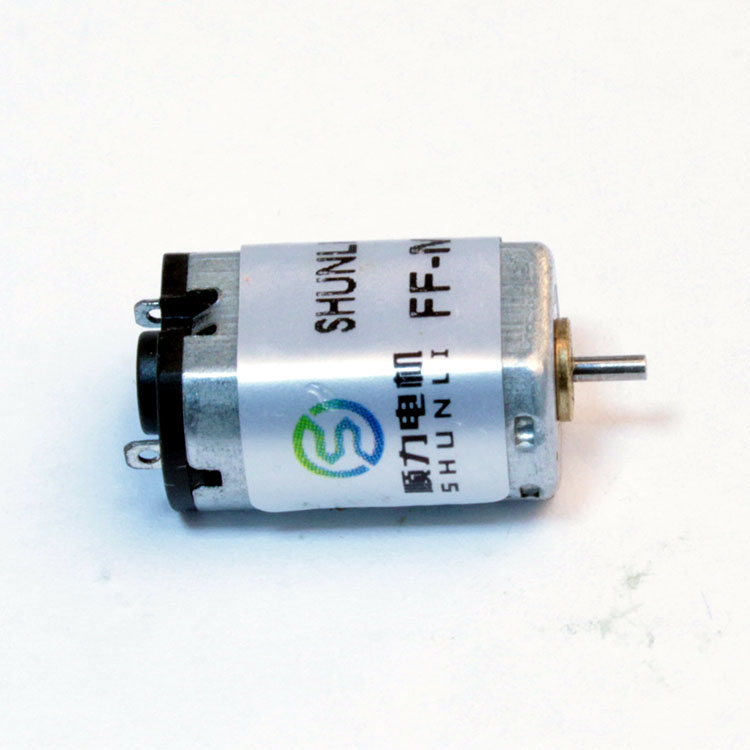

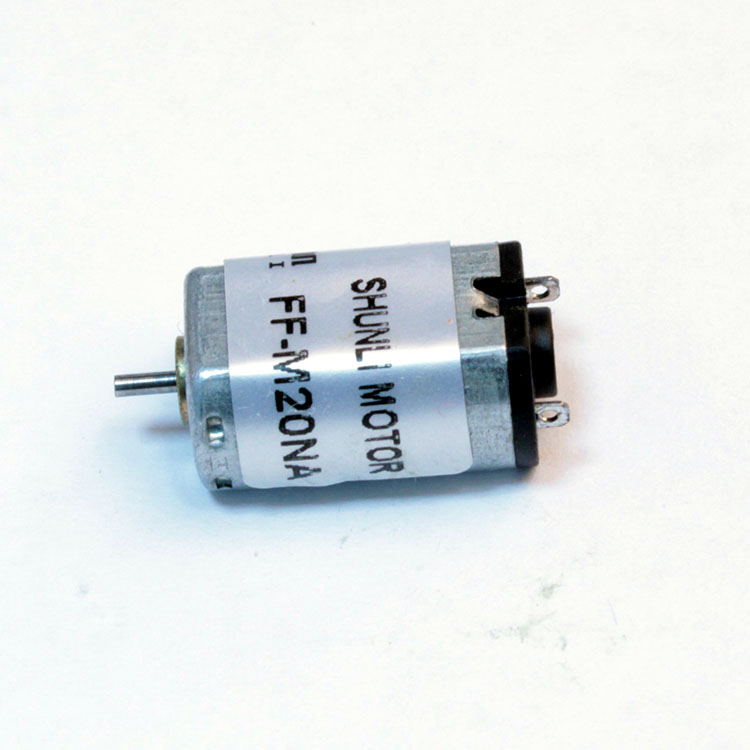

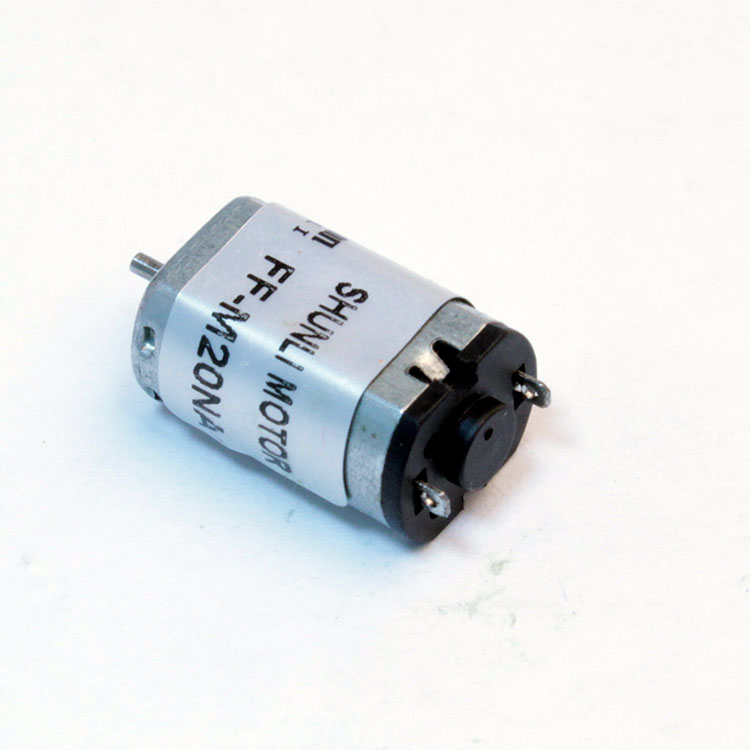

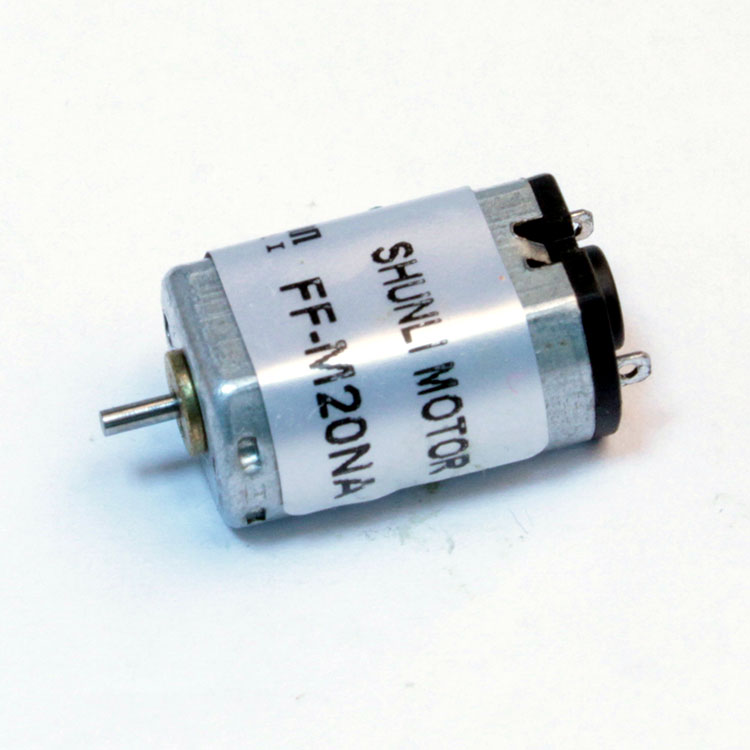

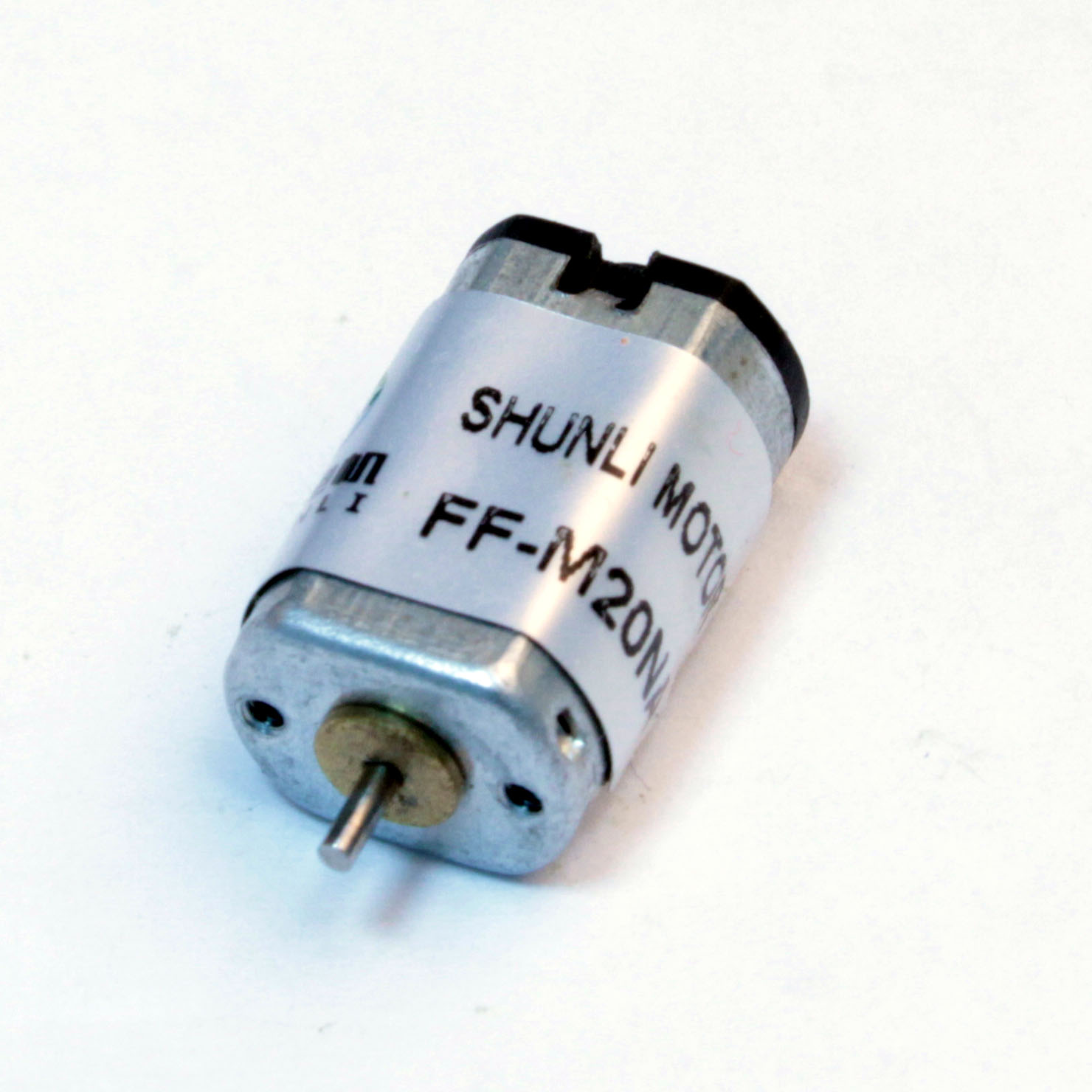

8mm *10mm M10 Toys Dc Mini Small Motor 1.5v-6v

1 / 5

8mm *10mm M10 Toys Dc Mini Small Motor 1.5v-6v

Send Inquiry

Product Description

Low noise 2.4v 3.6v dc brushed motor door lock

Promotion

Our motors have long life, high efficiency and good stability. Insert the drive inside the motor to capture data more accurately.

Product Description

PMDC MOTOR Technical Data
PMDC MOTOR Model		Rated Voltage (V)		No-Load		Rated				Stall
PMDC MOTOR Model		Operating Range	Nominal	Speed (RPM)	Current (mA)	Speed (RPM)	Current (mA)	Torque (mN.m / gf.cm)	Power (W)	Current (mA)	Torque (mN.m / gf.cm)
FF-M10VA	06230	2.0~5.0	4.5 VDC	23200	0.065	17500	0.14	0.098 / 1	0.2	0.39	0.39 / 4
FF-M10VA	09120	1.0~3.0	1.5 VDC	14000	0.12	6000	0.3	0.157 / 1.6	0.08	0.25	0.25 / 2.6

Know more parameters!

Application

Certifications

Why Choose Us

1. Production Factory Capabilities

We specialize in producing motors for more than 14 years. Our professional R&D team and mature management guarantee a highly reliable supply and partnership.

2. Quality Control Standards

To ensure the highest quality, every step of the process—from materials receiving to final shipment—is carefully checked. Quality is the core foundation of our development.

Our Services

We hold high credibility as a trusted seller in the industry.
100% on-time delivery rate to ensure your products arrive exactly when expected.
Standard samples are produced within 2 weeks; custom samples within 3 weeks.
Timely response window, ensuring your inquiries are answered within 2 hours.

Frequently Asked Questions

Q1: Are you a trading company or a manufacturer?

A: We are a factory. We have specialized in micro DC motors and DC gear motors for more than 14 years.

Q2: What is the payment term for a new customer?

A: We can establish an Assurance Order online which supports payments via credit cards, PayPal, or TT wire transfers.

Q3: If I can't find a suitable motor on the website, can you customize one?

A: Yes, we can customize a motor design according to our customer's specific technical requirements.

Q4: Do you hold certifications for the motors?

A: Yes, we hold CE, FCC, ISO, and other relevant industry certifications. If other specialized certificates are required, we can apply for them.

Q5: How is your quality control structured?

A: We have inspection personnel stationed on every production line. Finished products are tested using advanced equipment, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Chambers, and Noise Testers.

Q6: What voltage configurations do you support for micro DC motors?

A: Our standard mini DC motors support operating voltages ranging from 1.5V to 6V, including highly efficient 2.4V and 3.6V options designed specifically for electronic door locks.
