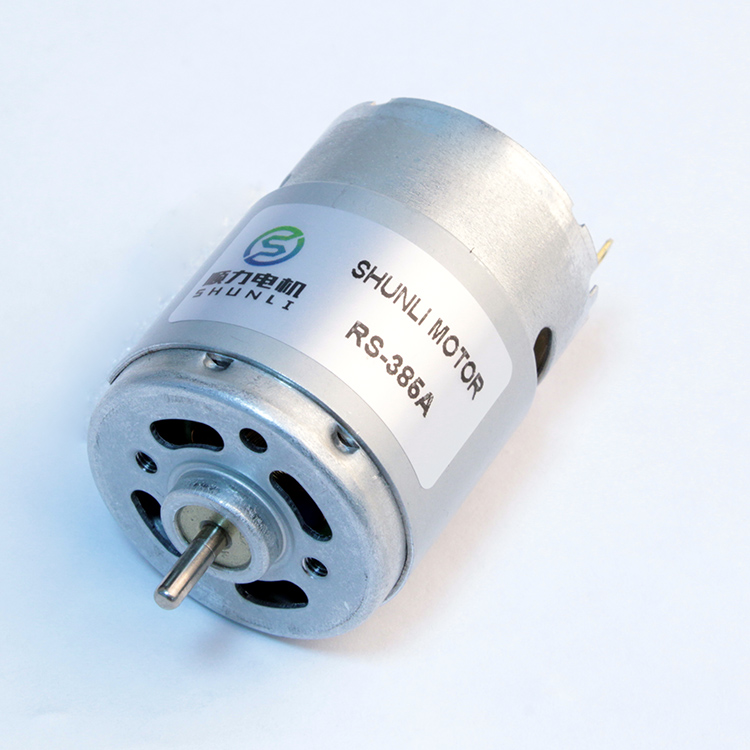

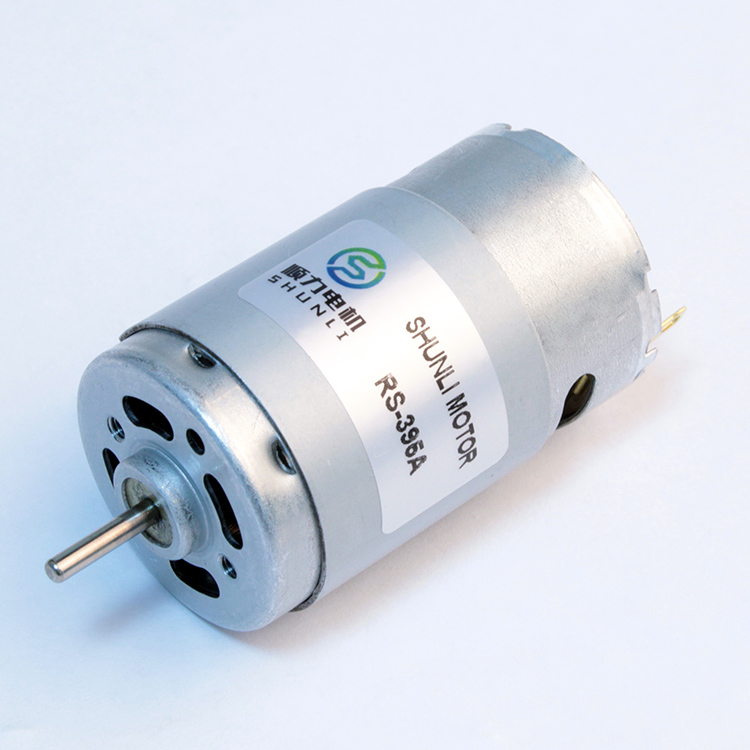

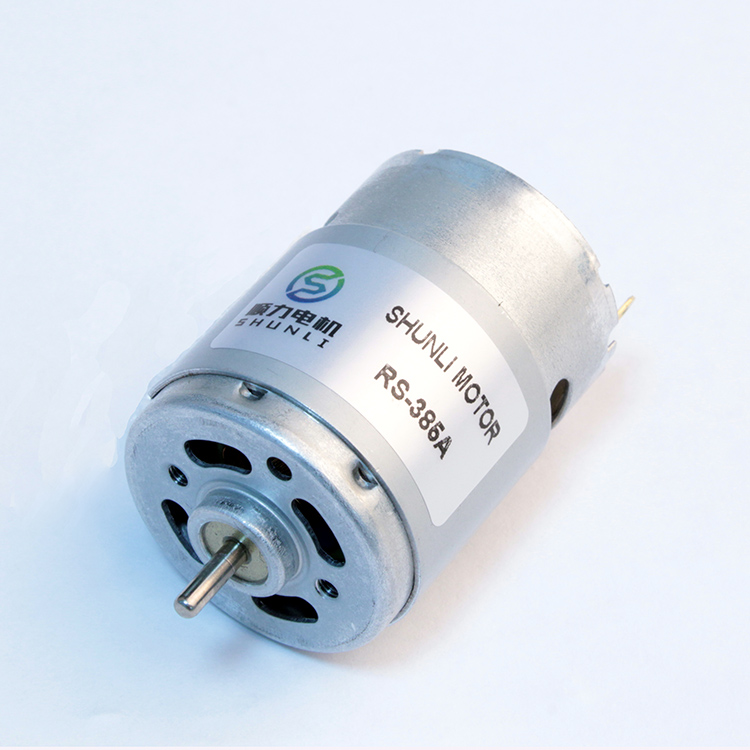

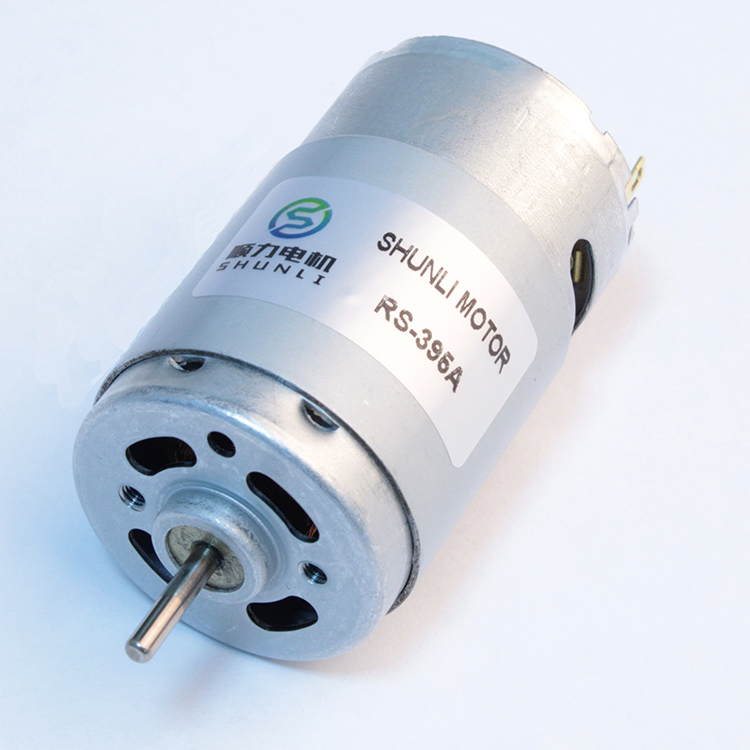

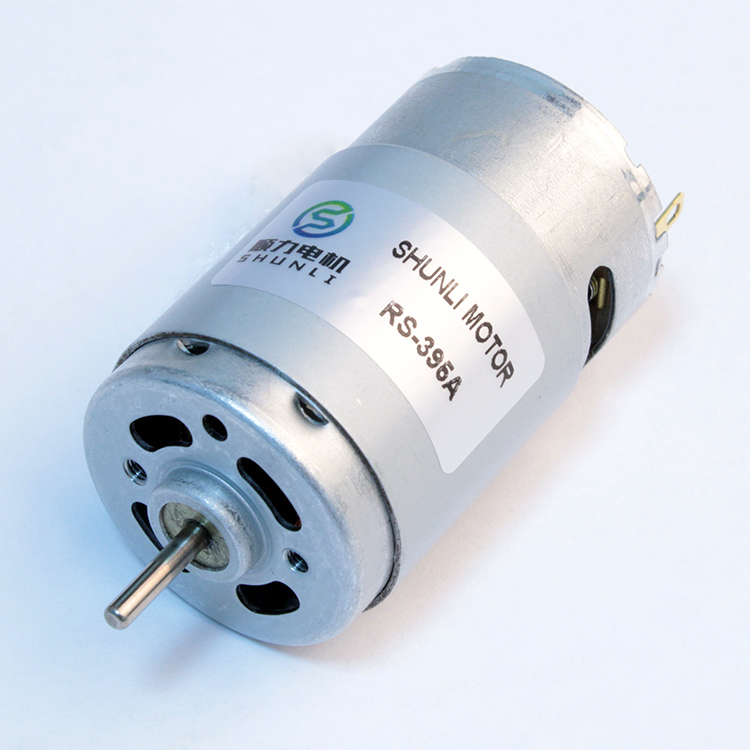

Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model
Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model
Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model
Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model
Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model
1 / 5
Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model
Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model
Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model
Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model
Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model

Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model

Send Inquiry

Product Description

RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque Divider Decor
Product Description
RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model
Product Details

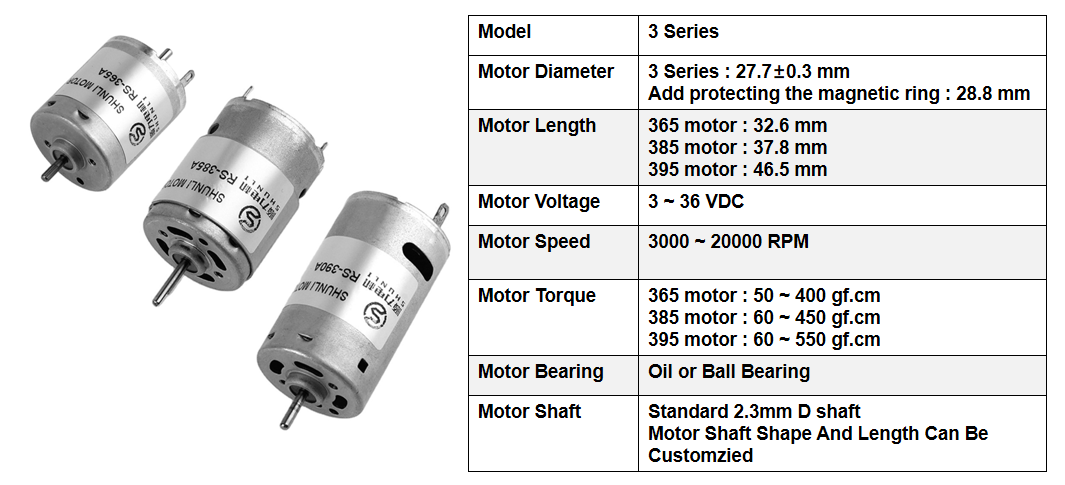

Micro 380 DC Motor Product Specifications Overview
Motor Customized Specification, Please contact me.
Reference Drawing
------ RS - 365

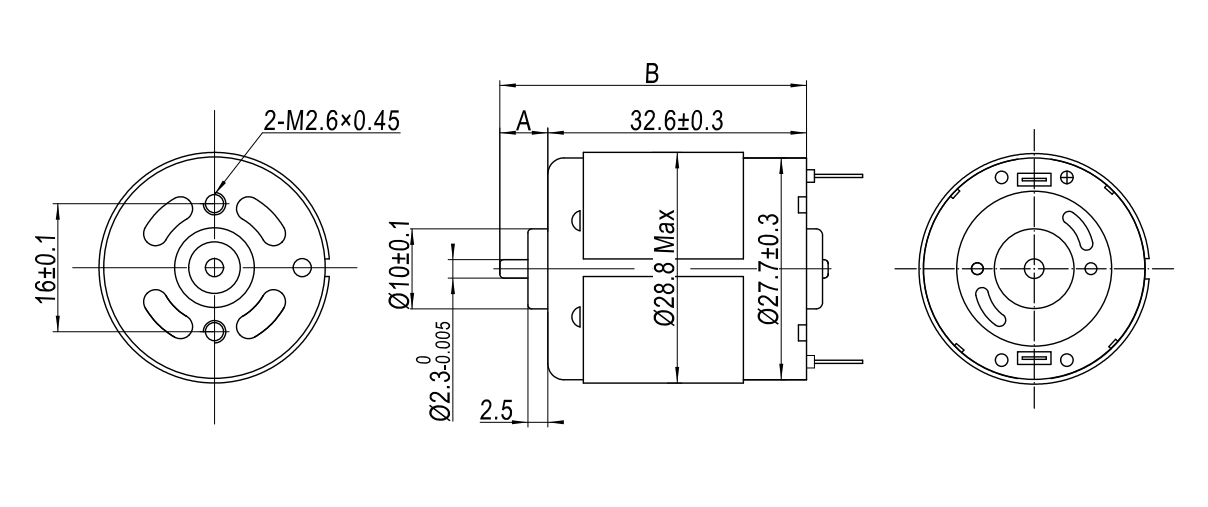

RS-365 Micro DC Motor Reference Dimension Drawing
------ RS - 385

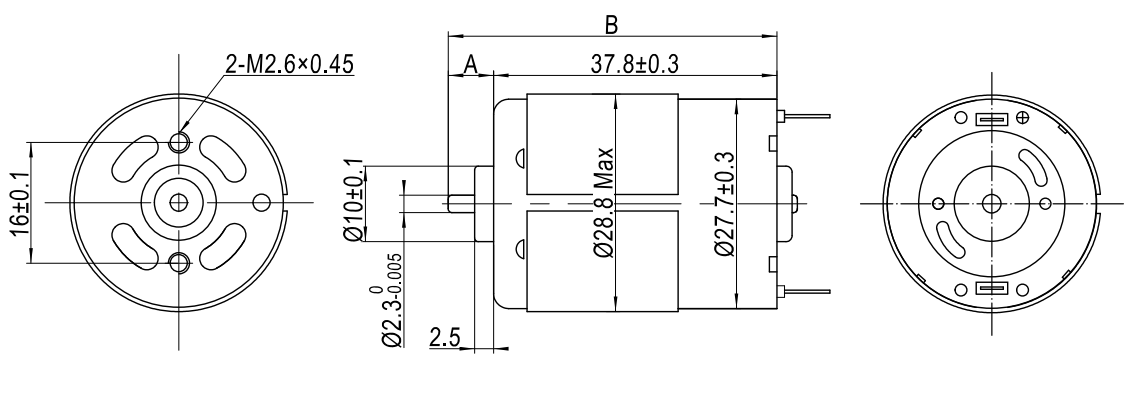

RS-385 Micro DC Motor Reference Dimension Drawing
------ RS - 395

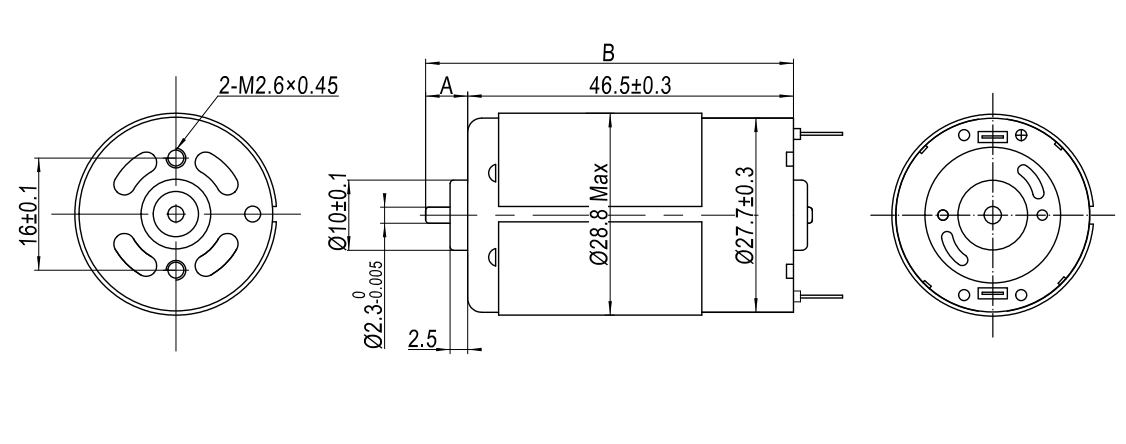

RS-395 Micro DC Motor Reference Dimension Drawing
The length of shaft can be customized, Please contact me.
Reference Datasheet
PMDC MOTOR Technical Data
Model Rated Voltage (V) No-Load Rated Stall
Operating Range Nominal Speed (RPM) Current (A) Speed (RPM) Current (A) Torque (mN.m / gf.cm) Power (W) Current (A) Torque (mN.m / gf.cm)
RS-390SH 20156R 6.0~12.0 12VDC 5000 0.08 4243 0.33 6.07 / 61.9 2.72 2.22 42.2 / 430
2975 6.0~12.0 12VDC 12000 0.29 10165 0.33 5.75 / 58.6 1.31 8.9 80.4 / 820
RS-395SH 15130 6.0~12.0 12VDC 3650 0.66 2949 0.25 5.83 / 59.5 1.8 1.06 30.4 / 310
15100R 6.0~24.0 24VDC 10300 0.07 8893 0.38 7.09 / 72.3 6.68 2.66 54.9 / 560
Recommend Product
Recommended Micro DC Motor Models Selection Header
Micro 380 DC Motor Model Recommendation 1
Micro 380 DC Motor Model Recommendation 2
Micro 380 DC Motor Model Recommendation 3
Micro 380 DC Motor Model Recommendation 4
Micro 380 DC Motor Model Recommendation 5
Micro 380 DC Motor Model Recommendation 6
Micro 380 DC Motor Model Recommendation 7
Get in Touch
Looking forward to your feedback!
Feedback graphic banner
Frequently Asked Questions (FAQ)
QWhat are the main applications of the RS-380 and RS-385 micro DC motors?
These micro DC motors are widely used in high-speed, high-torque applications such as electric drills, garden tools, toy models, and various portable home appliances.
QCan the motor shaft length be customized?
Yes, the length of the shaft can be fully customized according to your specific size and design requirements.
QWhat voltage range do these micro motors operate within?
These micro motors typically operate within a flexible range of 6.0V to 24.0V DC, depending on the specific model specifications.
QHow can I get customized specifications for my motor project?
Please reach out with your specific technical requirements, including voltage, operating speed, torque, and power, and we can provide customized solutions.
QWhat is the maximum speed capacity for these motors?
Under specified nominal voltage conditions, these high-speed motors can achieve speeds up to 13,000 RPM, delivering stable performance with large torque.
