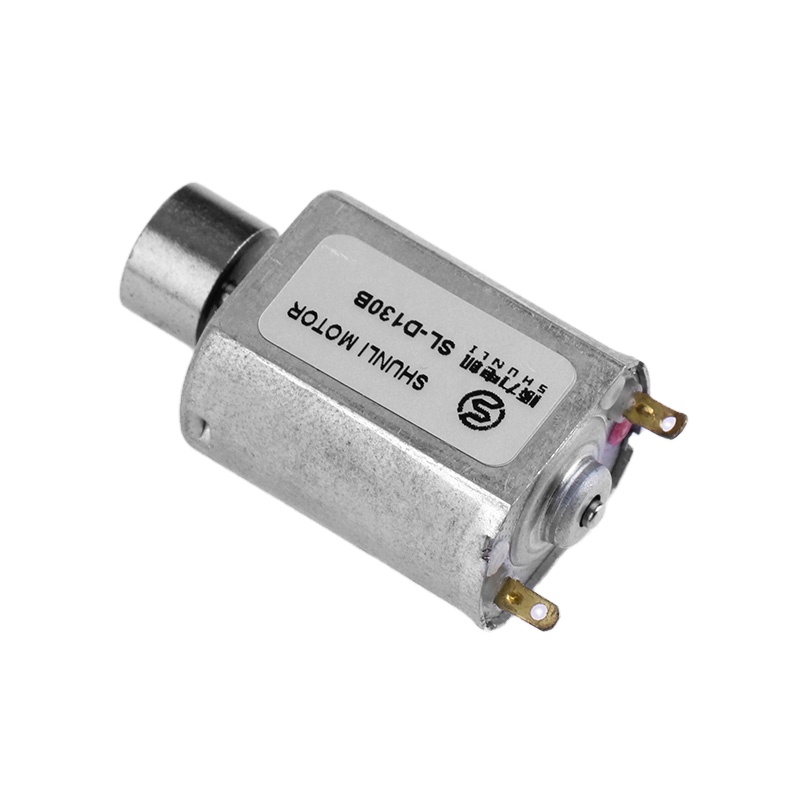

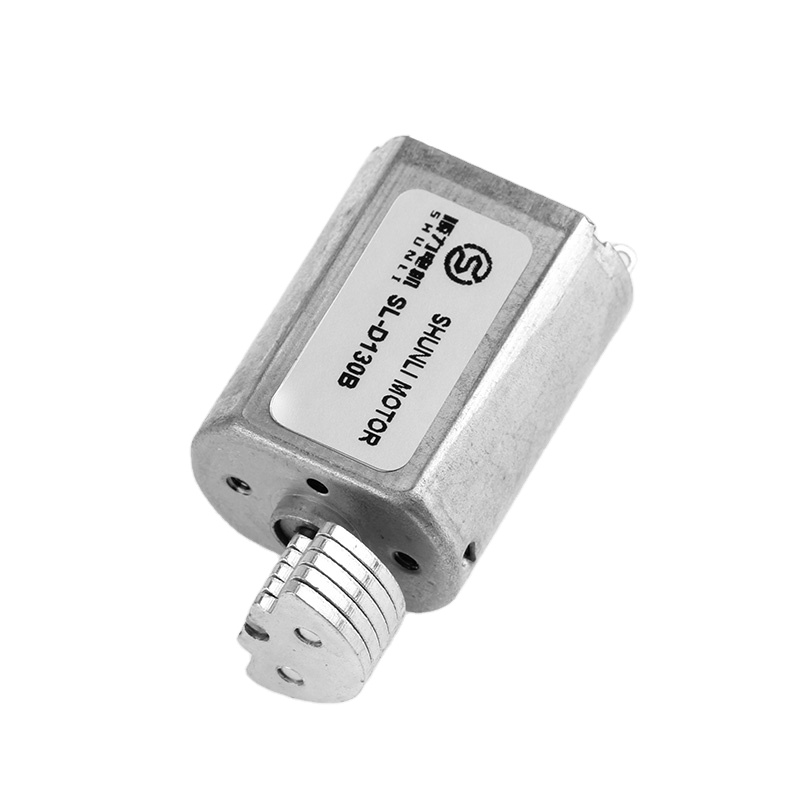

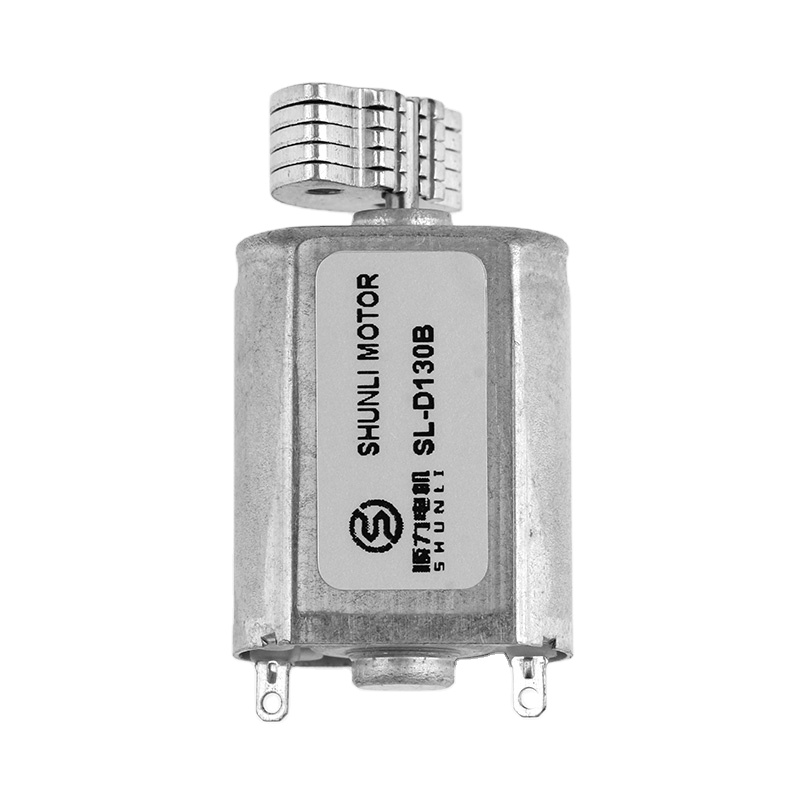

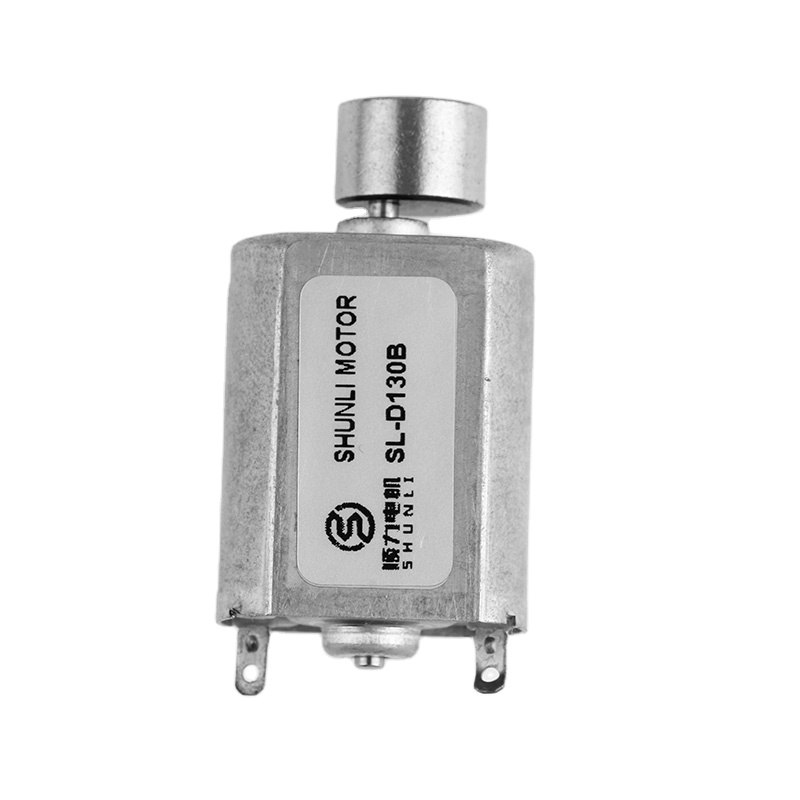

Small Electric Magnetic N20 3v Dc Vibration Motor

Promotion

Product Description

Small Electric Magnetic N20 3v Dc Vibration Motor Specifications

PMDC MOTOR Technical Data
PMDC MOTOR Model		Eccentric size	Voltage (V)			Rated		Stall
			Operating Range	Nominal	Start Voltage	Speed	Current	Current
			Operating Range	Nominal	Start Voltage	RPM	mA	mA
SL-DN20	08250	R5.8*4.8	3.0~5.0	4VDC	1.2VDC	7600	110	380
	08200	R5.8*3.6	3.0~5.0	3.7VDC	0.8VDC	8500	130	480
	12110	R5.8*6.0	1.5~3.0	2.4VDC	0.8VDC	9100	330	1100
	10145	R5.8*2.4	1.5~4.0	3VDC	0.6VDC	10600	160	700

Custom parameters available for motor specifications.

Certifications

Company Information

Why do you choose us:

1. Our Company

We are a factory specialized in producing motors for more than 14 years. We operate three factories supported by a professional R&D team, mature management, and an experienced engineering and sales team to deliver a reliable sourcing experience.

2. Quality Control

To guarantee precision, every stage—from incoming raw materials to final shipping inspection—is carefully checked. Consistent quality is the foundation of our continuous development.

3. Our Service

We are high credibility supplier.

100% on-time delivery rate ensures your production runs smoothly.

Standard samples are produced within 2 weeks. Customized samples are produced within 3 weeks.

Timely replies: your message will be responded to within 2 hours.

Related Products

Frequently Asked Questions

Q1 Are you a trading company or a manufacturer?

A: We are a factory. We have specialized in micro DC motors and DC gear motors for more than 14 years.

Q2 What is the payment term for new customers?

A: We support online assurance orders which can be paid via Mastercard, Visa, etc. Customers can also pay with PayPal or T/T.

Q3 I cannot find a suitable motor on your website, can you customize the motor for me?

A: Yes, we can customize a suitable motor according to our customer's specific requirements.

Q4 Do you have certificates for the motors?

A: Yes, we have CE, FCC, ISO, and other key industry certificates. If you require other certifications, we can apply for them for you.

Q5 How is your Quality Control?

A: We have inspection staff on every production line process. After finishing the motor assembly, we use specialized equipment to test the motor, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise testers.

Q6 What is the typical operating voltage for the N20 vibration motor?

A: The N20 vibration motor operates typically within a 1.5V to 5.0V DC range, with 3V and 3.7V being the standard nominal ratings for most miniature electronic devices.
